Ocpp Charging Pile EV Charger 22KW WITH LED SCREEN

  • Ocpp Charging Pile EV Charger 22KW WITH LED SCREEN

  • Model: AC1-EU22
  • Max. Output Power: 22KW
  • Working Voltage: 380-415VAC
  • Working Current: 32A
  • Charging Display: LCD SCREEN
  • Output Plug: TYPE2
  • Input Plug: NONE
  • Function: Bluetooth RFID Screen Wifi All functions
  • Sample: Support
  • Customization: Support
  • OEM&ODM: Support

    • Product Detail

    Product Tags

    Production Introduction

    This product provides EV controllable AC power. Adopt integrated module design. With a variety of protection functions, friendly interface, automatic charging control. This product can communicate with the monitoring center or operation management center in real time through RS485, Ethernet, 3G/4G GPRS. Real-time charging status can be uploaded, and the real-time connection status of the charging line can be monitored. Once disconnected, stop charging immediately to ensure the safety of people and vehicles.This product can be installed in social parking lots, residential quarters, supermarkets, roadside parking lots, etc.

    Rest assured, you are safe with the full certification of iEVLEAD products. We prioritize your health and have obtained all necessary certifications to ensure a safe and reliable charging experience. From rigorous testing to compliance with industry standards, our charging solutions are designed with your safety in mind. Use our certified products to charge your electric car, so that you can charge with peace of mind and peace of mind. Your safety is our top priority and we stand by the quality and integrity of our certified charging stations.

    The LED display on the charger can show different status: connected to the car, charging, fully charged, charging temperature, etc. This helps identify the working status of the EV charger and gives you information about charging.

    Features

    7KW/11KW/22kW compatible design.
    Home use, smart APP control.
    High level of protection for complex environments.
    Intelligent light information.
    Minimal size, streamlined design.
    Smart charging and load balancing.
    During the charging process, report the abnormal situation in time, alarm and stop charging.
    The European Union, North America, Latin America, Japan support cellular bands.
    The software has an OTA (remote upgrade) function, eliminating the need for pile removal.

    Specifications

    Model: AC1-EU22
    Input Power supply: 3P+N+PE
    Input voltage： 380-415VAC
    Frequency: 50/60Hz
    Output Voltage: 380-415VAC
    Max current: 32A
    Rated power: 22KW
    Charge plug: Type2/Type1
    Cable length: 3/5m(include connector)
    Enclosure: ABS+PC(IMR technology)
    LED indicator: Green/Yellow/Blue/Red
    LCD SCREEN: 4.3'' color LCD(Optional)
    RFID: Non-contact(ISO/IEC 14443 A)
    Start method: QR code/ Card/BLE5.0/P
    Interface: BLE5.0/RS458;Ethernet/4G/WiFi(Optional)
    Protocol: OCPP1.6J/2.0J(Optional)
    Energy Meter: Onboard Metering, Accuracy level 1.0
    Emergency stop: Yes
    RCD: 30mA TypeA+6mA DC
    EMC level: Class B
    Protection grade: IP55 and IK08
    Electrical protection: Over-current,Leakage,Short Circuit,Grounding,Lightning, Under-voltage, Over-voltage and Over-temperature
    Certification: CE,CB,KC
    Standard: EN/IEC 61851-1, EN/IEC 61851-21-2
    Installation: Wall mounted/Floor mounted(with column optional)
    Temperature: -25°C~+55°C
    Humidity: 5%-95%(Non-condensation)
    Altitude: ≤2000m
    Product size: 218*109*404mm(W*D*H)
    Package size: 517*432*207mm(L*W*H)
    Net weight: 5.0kg

    Application

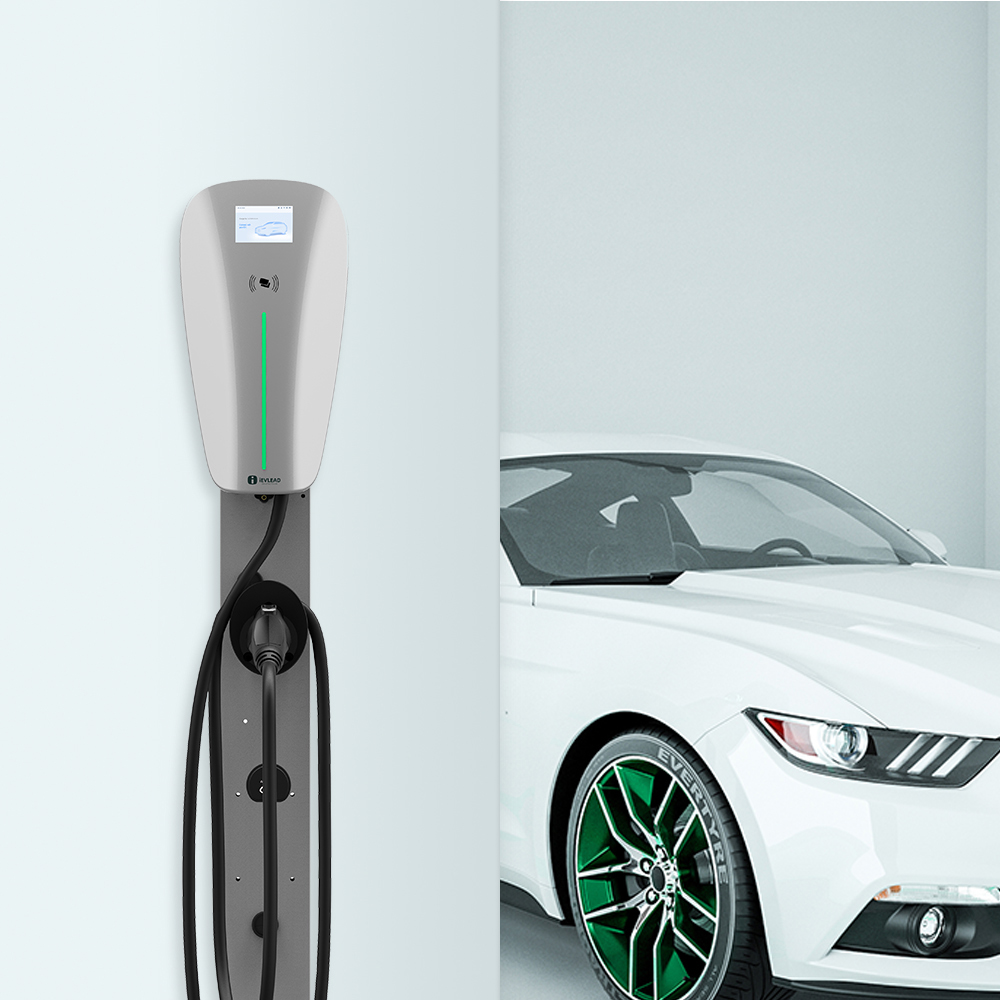

    ap0114

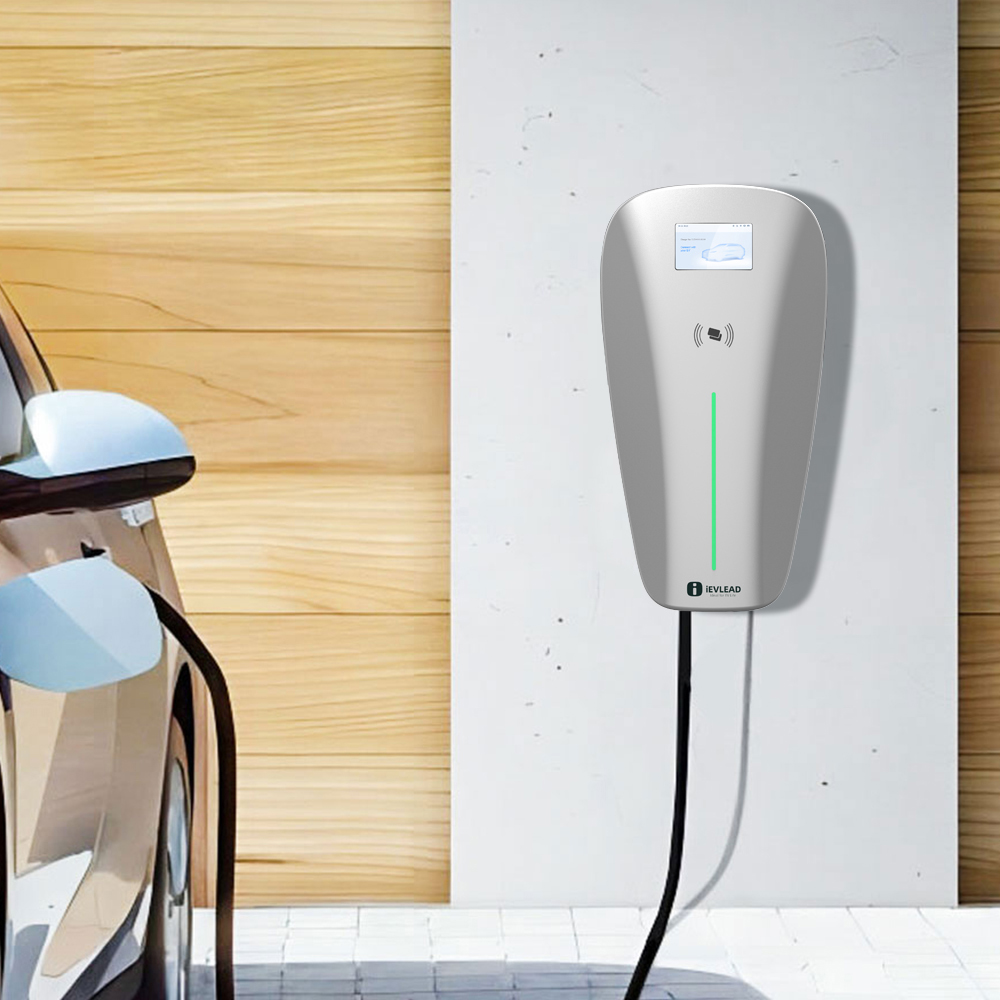

    ap0214

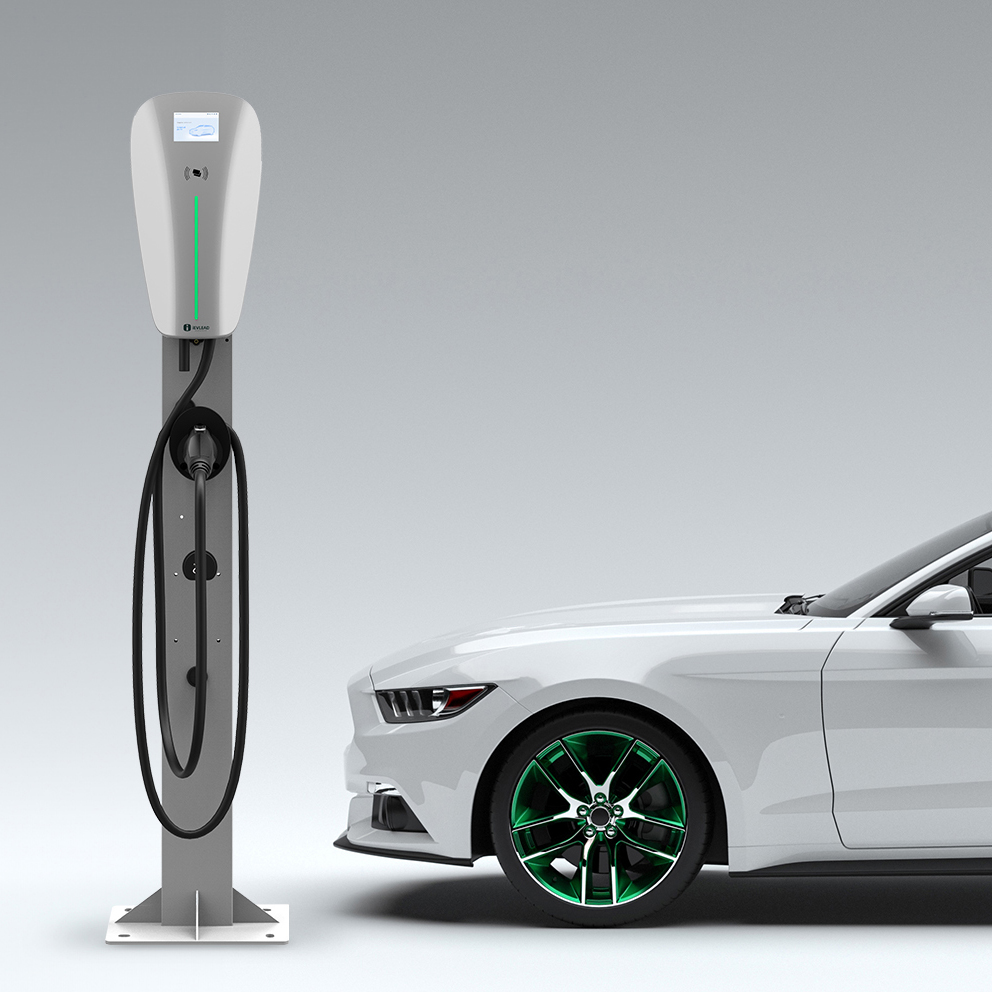

    ap0314

    FAQs

    1. Are you a factory or trading company?

    A: We are a professional manufacturer of new and sustainable energy applications.

    2. What is a Charging Pile EV Charger 22kW?

    A: Charging Pile EV Charger 22kW is a level 2 electric vehicle (EV) charger that provides a charging power of 22 kilowatts. It is designed to charge electric vehicles at a faster rate compared to standard level 1 chargers.

    3. What types of electric vehicles can be charged using a Charging Pile EV Charger 22kW?

    A: Charging Pile EV Charger 22kW is compatible with a wide range of electric vehicles, including plug-in hybrid electric vehicles (PHEVs) and battery electric vehicles (BEVs). Most modern EVs can accept charging from a 22kW charger.

    4. What type of connector does the AC EV EU 22KW charger use?

    A: The charger is equipped with a Type 2 connector, which is commonly used in Europe for electric vehicle charging.

    5. Is this charger for outdoor use?

    A: Yes, this EV charger is designed for outdoor use with protection level IP55, which is waterproof, dustproof, corrosion resistance, and rust prevention.

    6. Can I use an AC charger to charge my electric car at home?

    A: Yes, most electric car owners use AC chargers to charge their vehicles at home. Ac chargers are usually installed in garages or other designated parking areas for overnight charging. However, the charging speed may vary depending on the power level of the AC charger.

    7. How long does it take to charge an electric vehicle using a Charging Pile EV Charger 22kW?

    A: Charging times vary depending on the battery capacity of the vehicle and its state of charge. However, a Charging Pile EV Charger 22kW can typically provide a full charge to an EV within 3 to 4 hours, depending on the vehicle's specifications.

    8. What is the warranty?

    A: 2 years. In this period, we will supply technical support and replace the new parts by free, customers are in charge of delivery.
