iEVLEAD Type 2 22KW Fast Electric Vehicle Portable AC Charger


  • Model: PD2 - EU22
  • Max.Output Power: 22KW
  • Working Voltage: 400V±10%
  • Working Current: 6A, 10A,13A,16A,20A,24A,32A
  • Charging Display: LCD + LED light indicator
  • Output Plug: Type 2
  • Function: Plug & Charge
  • Sample: Support
  • Customization: Support
  • OEM/ODM: Support
  • Certificate: CE, TUV MARK, CB, UKCA, IEC 62196-2, IEC62752
  • IP Grade: IP66
  • Warranty: 2 years
  • Product Detail

    Product Tags

    Production Introduction

    iEVLEAD EV Portable AC Charger is a compact charging device that allows you to charge your electric vehicle anytime, anywhere. Suitable for indoor or outdoor use, this EVSE charger is a single-phase mode 2 portable AC charger, which can meet 13A single-phase AC charging, and the current can be switched between 6A, 8A,10A,13A,16A,20A,24A,32A. With its plug-and-play feature, you can easily connect the ignition and electric car to the charger and start charging immediately. iEVLEAD electric car charger IP66 protection grade, no matter the temperature or snowfall, you can safely charge your vehicle without any worries. In addition, the electric vehicle charging cable can be used in the temperature range of -25°C to 50°C. Regardless of thunderstorms, high temperatures, or snowfall, you can rest assured to charge the vehicle without any worries.

    Features

    1: Easy to operate, plug & play.
    2: Single-phase mode 2
    3: TUV certification
    4: Scheduled & delayed charging
    5: Leakage Protection: Type B (AC 30mA) + DC6mA
    6: IP66

    7: Current 6-16A output adjustable
    8: Relay welding inspection
    9: LCD +LED indicator
    10: Internal temperature detection and protection
    11: Touch button, current switching, cycle display, appointment delay rated charging
    12: PE missed alarm

    Specifications

    Working power : 400V±10%, 50HZ±2%
    Charging Mode IEC62196-2, IEC62752, CE, CB, TUV Mark, UKCA
    Scenes Indoor/Outdoor
    Altitude (m): ≤2000
    Current Switching It can meet 16A single-phase AC charging, and the current can be switched between 6A,10A, 13A, 16A,20A, 24A, 32A
    Working environment temperature :  -25~50℃
    Storage temperature:  -40~80℃
    Environment humidity: < 93 <>%RH±3%RH
    External magnetic field: Earth’s magnetic field, Not exceeding fivetimes the earth’s magnetic field in any direction
    Sinusoidal wave distortion: Not exceeding 5%
    Protect: Over-current 1.125ln, over- voltage and under- voltage±15%, over temperature ≥70℃, reduce to 6A to charge, and stop charging when>75℃
    Temperature check 1. Input plug cable temperature detection.                 2. Relay or internal temperature detection.
    Ungrounded protection: Button switch judgment allows ungrounded charging, or PE is not connected fault
    Welding alarm: Yes, the relay fails after welding and inhibits charging
    Relay control: Relay open and close
    LED: Power, charging, fault three-color LED indicator

    Application

    iEVLEAD EV portable AC chargers are for indoor and outdoor, and widely used in EU.

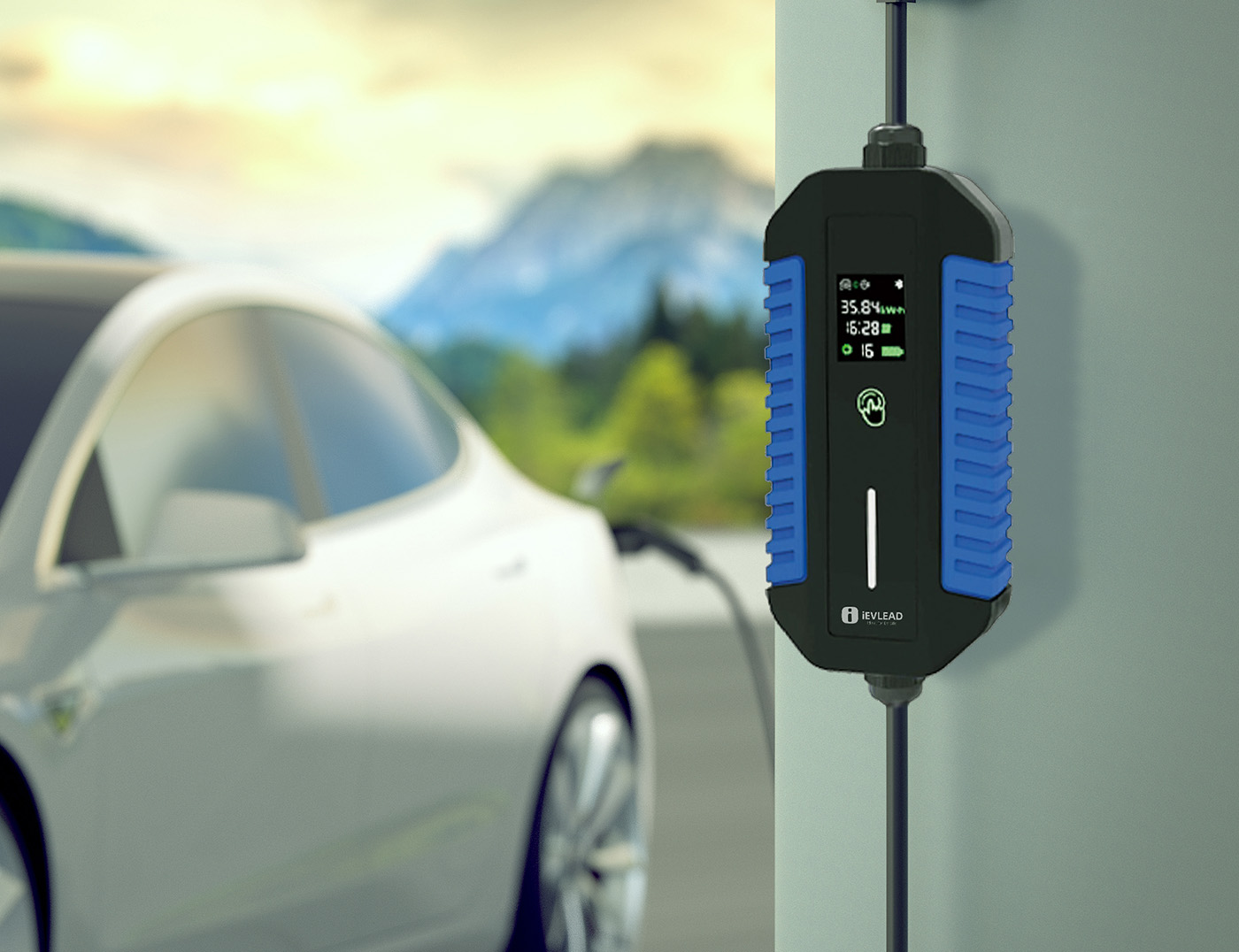

    Electric vehicle AC charger 22KW

    FAQs

    1. What is the recommended maintenance for an IP65 rated device?

    To maintain the integrity and functionality of IP65 rated equipment, proper maintenance guidelines must be followed. Periodic cleaning of the device housing to remove dust or debris is recommended. Avoid using abrasive materials or excess water when cleaning. Additionally, regular inspections are recommended to ensure the integrity of the seal or gasket. Any damage or wear should be attended to and repaired by authorized personnel immediately.

     2. Does RFID technology have security issues?

    While RFID technology has many advantages, there are also some security issues that need to be considered. These include the possibility of unauthorized access to RFID tags or data, potential data breaches, and RFID tag cloning. Implementing proper encryption, access control, and privacy measures can help mitigate these risks and ensure secure RFID use.

     3. Can I use a regular power outlet to charge my electric car?

    While it is possible to charge an EV using a regular electrical outlet, regular charging is not recommended. Conventional power outlets are typically lower rated (typically around 120V, 15A in the US) than dedicated EV AC chargers. Charging using a conventional outlet for prolonged periods of time can result in slow charging and may not provide the necessary safety features required for EV charging.

     4. Can I use the EVSE Portable AC Charger with a power generator?

    Yes, as long as the power generator can supply the necessary voltage and current required by the charger, you can use the EVSE Portable AC Charger with a power generator. However, please refer to the charger's user manual or consult the manufacturer for specific guidelines and recommendations.

     5. Does the EVSE Portable AC Charger come with a warranty?

    Yes, the EVSE Portable AC Charger typically comes with a warranty provided by the manufacturer. The warranty period may vary, so it is advisable to check the product documentation or contact the manufacturer for detailed warranty information.

    6. What EV charger do I need?

    It is best to choose according to the OBC of your vehicle. If the OBC of your vehicle is 3.3KW then you can only charge your vehicle at 3 3KW even if you buy 7KW or 22KW.

    7. Are your products certified by any safety standards?

    Yes, our products are manufactured in compliance with various international safety standards, such as CE, ROHS, FCC and ETL. These certifications validate that our products meet the necessary safety and environmental requirements.

    8. What kinds of payment methods do you accept?

    You can make the payment to our bank account or PayPal: 30% T/T deposit and 70% T/T balance the shipment.
