Products
iEVLEAD SAEJ1772 High Speed AC EV Chargers
Production Introduction
iEVLEAD SAEJ1772 high -speed AC EV charger is an essential accessory for all electric vehicles users. Its significant functions, such as transplantability, built-in plug holders, security mechanisms, fast charging functions and user -friendly interfaces, making it the final solution to meet all EV charging needs.
Say goodbye to the tedious charging process, and welcome a more convenient and more effective way to maintain the motivation of the vehicle. When you are traveling or going out of your house, you don't have to worry about charging again, because the EV Chargers can be carried with the Car.
Features

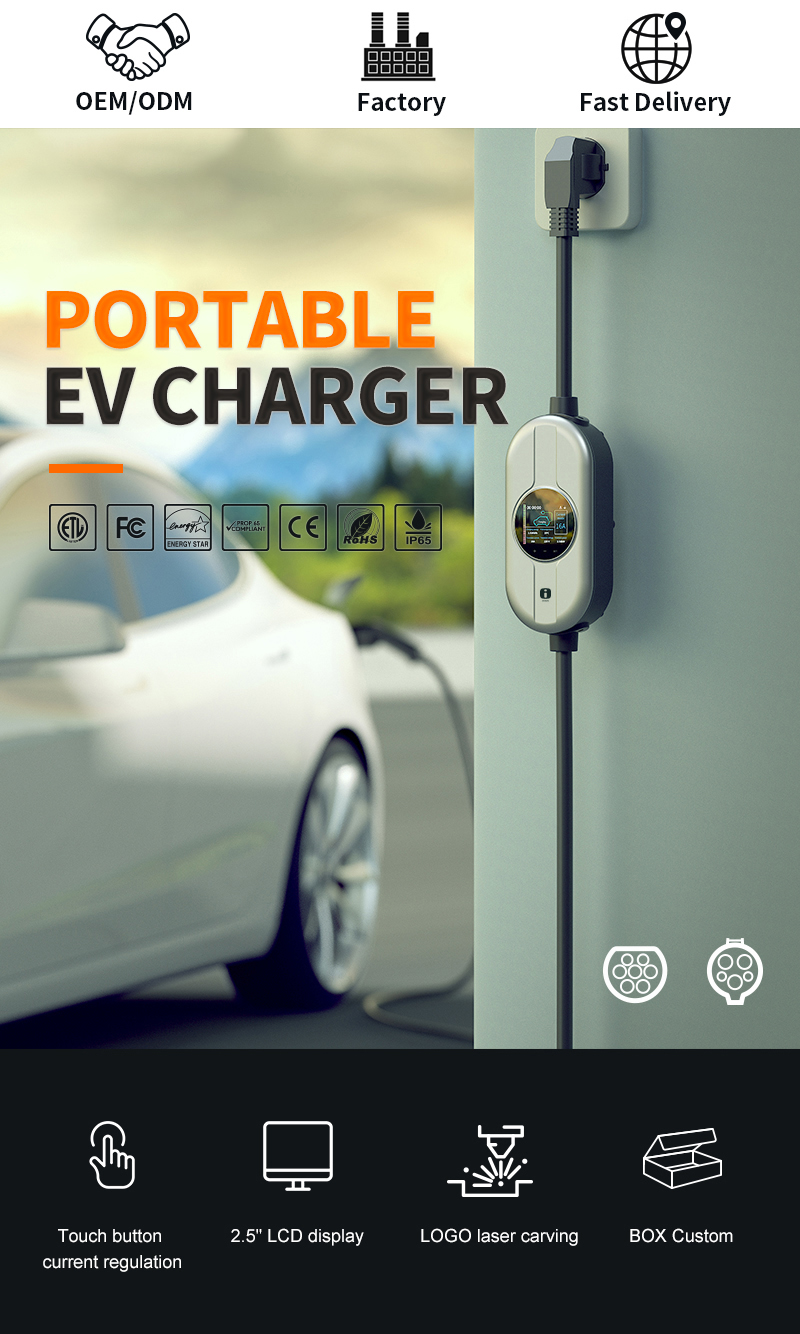

* Portable Design: With its compact and lightweight structure, you can easily transport it from one place to another, perfect for home and travel use. Whether you're on a road trip or visiting friends and family, you can rely on our chargers to keep your vehicle powered.

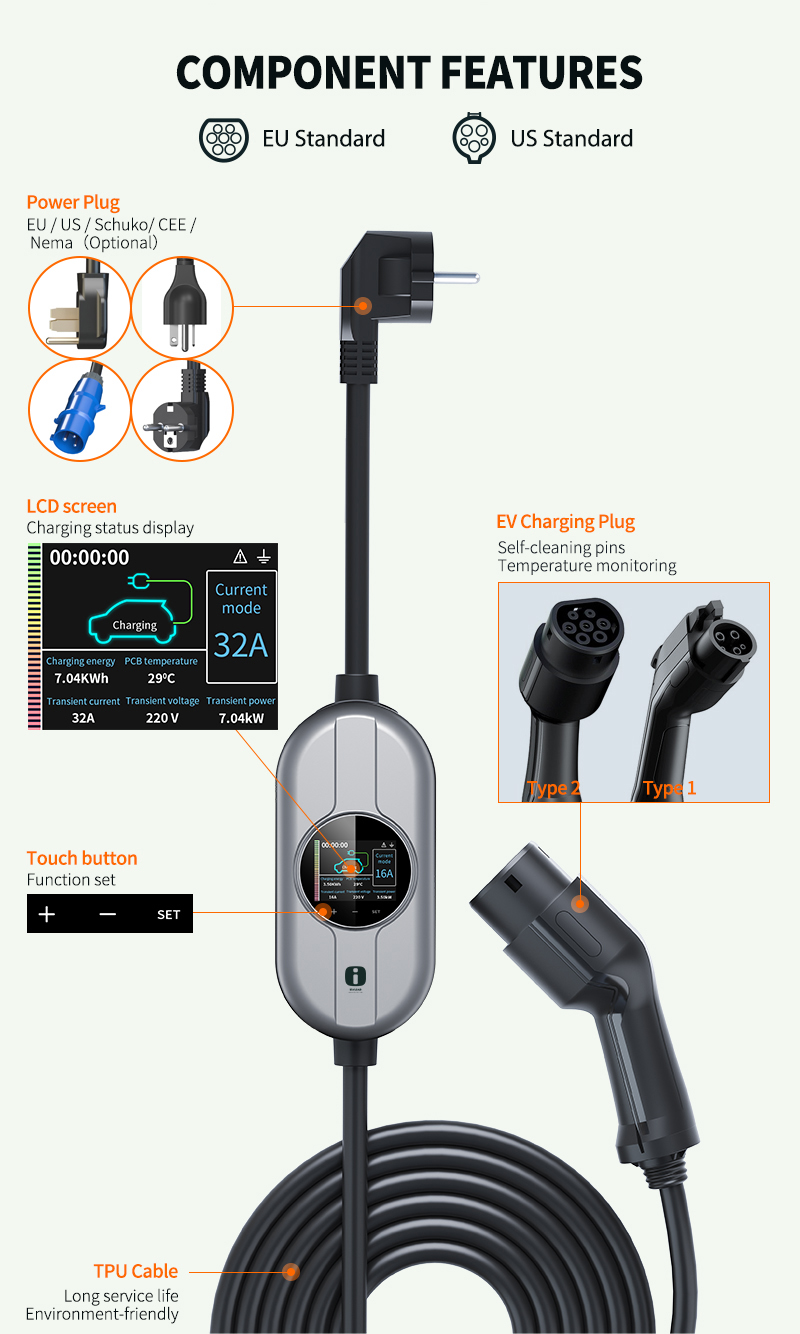

* User-Friendly: With a clear LCD display and intuitive buttons, you can easily control and monitor the charging process. Additionally, the charger features a customizable charging timer, allowing you to choose the most convenient charging schedule for your vehicle.

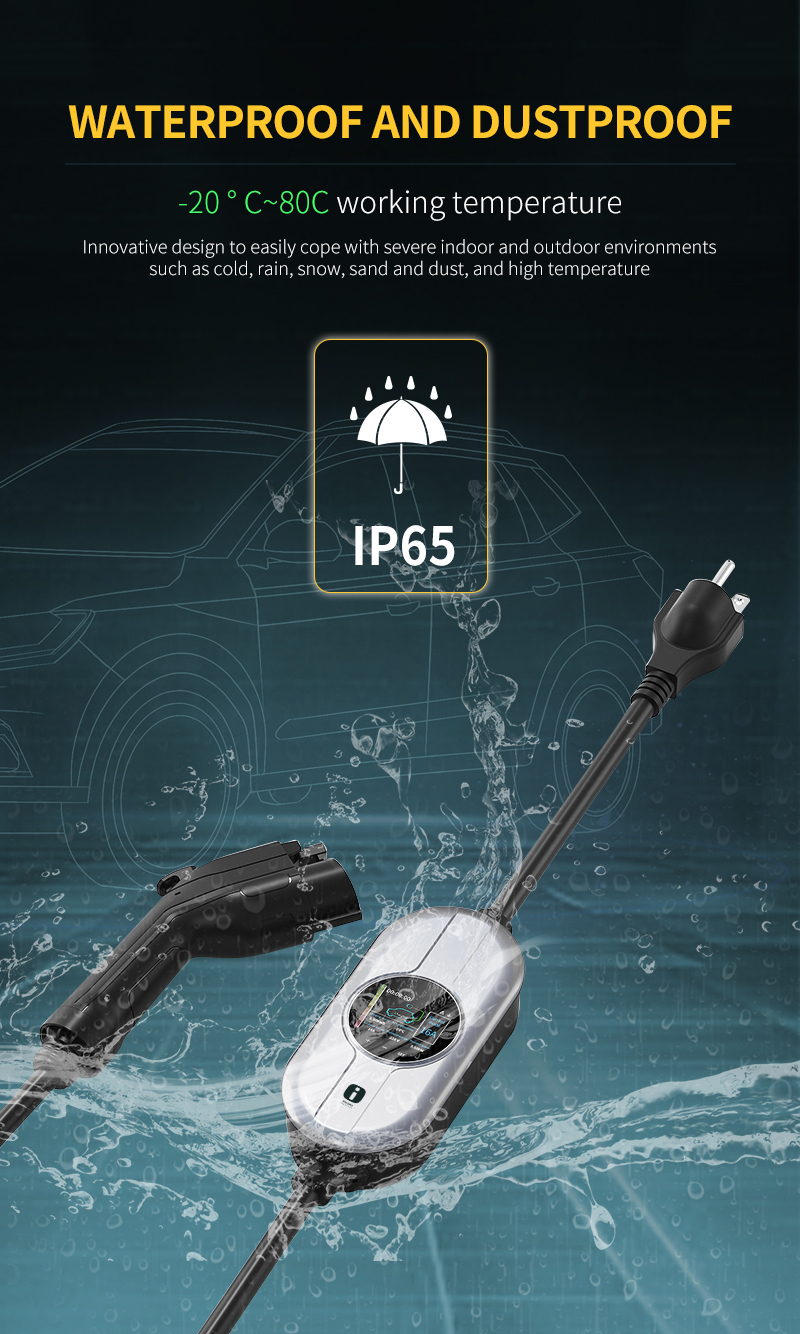

* Widely Use: Waterproof & Dustproof and Anti-Pressure made them widely use. No matter indoor or outdoor, and which model your vehicle is, you can rely on this charger to charge your car safely and efficiently.
* Safety: Our chargers are designed with several safety features for your peace of mind. Built-in overvoltage protection, overcurrent protection, short circuit protection and other protection mechanisms to ensure the safety of your vehicle and the charger itself.
Specifications
| Model: | PB1-US7 | |||
| Max. Output Power: | 7.68KW | |||
| Working Voltage: | AC 110~240V/Single phase | |||
| Working Current: | 8, 12, 16, 20, 24, 28, 32A Adjustable | |||
| Charging Display: | LCD Screen | |||
| Output Plug: | SAE J1772 (Type1) | |||
| Input Plug: | NEMA 14-50P | |||
| Function: | Plug&Charge / RFID / APP (optional) | |||
| Cable Length： | 7.4m | |||
| Withstand Voltage： | 2000V | |||
| Work Altitude: | <2000M | |||
| Stand by: | <3W | |||
| Connectivity: | OCPP 1.6 JSON (OCPP 2.0 compatible) | |||
| Network: | Wifi & Bluetooth (Optional for APP smart control) | |||
| Timing/Appointment: | Yes | |||
| Current Adjustable: | Yes | |||
| Sample: | Support | |||
| Customization: | Support | |||
| OEM/ODM: | Support | |||
| Certificate: | FCC, ETL, Energy Star | |||
| IP Grade: | IP65 | |||
| Warranty: | 2 years | |||
Application
iEVLEAD Chargers tested on leading EV models: Chevrolet Bolt EV, Volvo Recharge, Polestar, Hyundai Kona and Ioniq, Kira NIRO, Nissan LEAF, Tesla, Toyota Prius Prime, BMW i3, Honda Clarity, Chrysler Pacifica, Jaguar I-PACE, and more. So they are widely used in United States, Canada and other Type 1 markets.
FAQs
* Can I use any AC charger to charge my device?
It is recommended to use the charger specifically designed for your device. Different devices require different voltage and current specifications to charge properly. Using an incorrect charger may result in inefficient charging, slower charging times, or even damage to the device.
* Can I use a higher wattage charger for my device?
Using a higher wattage charger is generally safe for most devices. The device will only draw the amount of power it requires, so a higher wattage charger will not necessarily damage the device. However, it is crucial to ensure that the voltage and polarity match the device's requirements to avoid any potential harm.
* Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. Specialist packaging and non-standard packing requirements may incur an additional charge.
* What is the life expectancy of EV chargers for US Market?
L1 and L2 units that use AC (Alternative Current) have been known to have a life expectancy of 5 to 10 years, but this is only an expectancy and could easily last longer or, in some cases, shorter. L3 charging uses DC (Direct Current), which can have intense charging performance.
* How does the Mobile Home AC EV Charging Station work?
This charging station connects to your home's power source and converts AC to DC, compatible with electric vehicles. You simply plug the vehicle's charging cable into the charging station and it automatically starts charging the vehicle's battery.
* Can I use the Type1 Portable Home electric car charger with other types of EVs?
No, the Type 1 Portable Home electric car charger is designed for EVs with Type 1 connectors. If your EV has a different type of connector, you will need to find a charging station that is compatible with that connector.
* How long can an EV charging system cable be?
EV charging cables are available in different lengths, usually between 4 to 10m. A longer cable gives you more flexibility, but also heavier, more cumbersome and more expensive. Unless you know you need the extra length, a shorter cable will usually suffice.
* How quickly do EV batteries degrade?
On average, EV batteries only degrade at a rate of 2.3% of maximum capacity per year, so with proper care you can reliably expect your EV battery to last as long or longer than ICE drivetrain components.
