iEVLEAD 7KW Type2 Model3 Charging point Home EV Charger

Model: AB2-EU7-RS

Max. Output Power: 7KW

Working Voltage: AC230V/Single Phase

Working Current: 32A

Charging Display: LCD Screen

Output Plug: IEC 62196,Type 2

Function: Plug&Charge/RFID

Cable Length: 5M

Connectivity: OCPP 1.6 JSON (OCPP 2.0 compatible)

Sample: Support

Customization: Support

OEM/ODM: Support

Certificate: CE,ROHS

IP Grade: IP65

Warranty: 2 years

Send email to us

Product Detail

Product Tags

Production Introduction

The EV Charger comes with a standard Type2 (EU Standard, IEC 62196) connector that can charge any electric vehicle on the road. It has a visual screen, and can charge the electric car by RFID.iEVLEAD EV Charger is CE and ROHS listed, meeting the stringent requirements of the leading safety standards organization. The EVC is available in wall or pedestal mount configuration and supports standard 5meter cable lengths.

Features

1. 7KW Compatible designs
2. Minimal size,streamline design
3. Smart LCD Screen
4. Home charging station with RFID control
5. Smart charging and load balancing
6. IP65 protection level,high protection for complex environment

Specifications

Model				AB2-EU7-RS
Input/Output Voltage				AC230V/Single Phase
Input/Output Current				32A
Max Output Power				7KW
Frequency				50/60Hz
Charging Plug				Type 2 (IEC 62196-2)
Output Cable				5M
Withstand Voltage				3000V
Work Altitude				<2000M
Protection				over voltage protection, over load protection, over-temp protection, under voltage protection, earth leakage protection, lightning protection, short circuit protection
IP level				IP65
LCD Screen				Yes
Function				RFID
Network				No
Certification				CE, ROHS

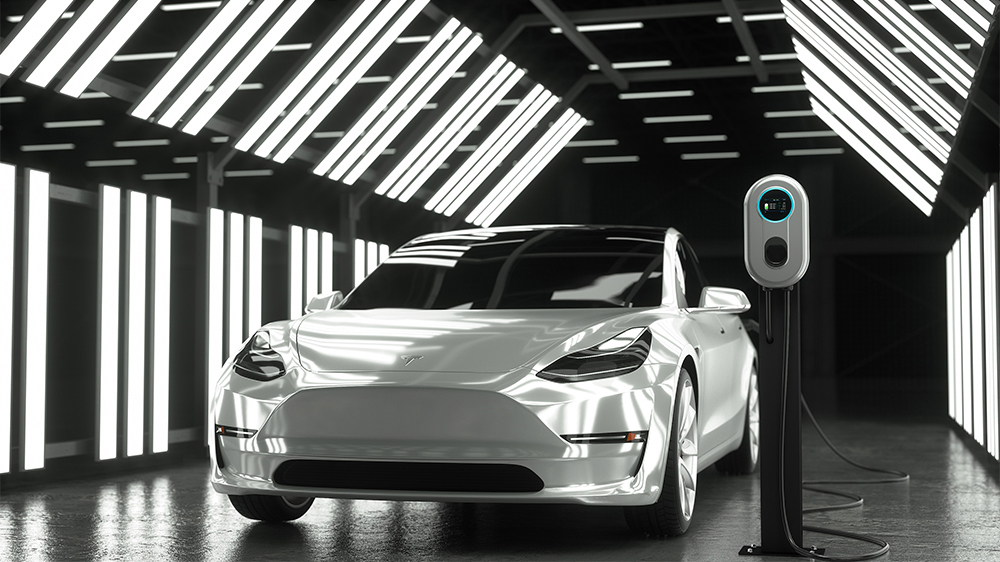

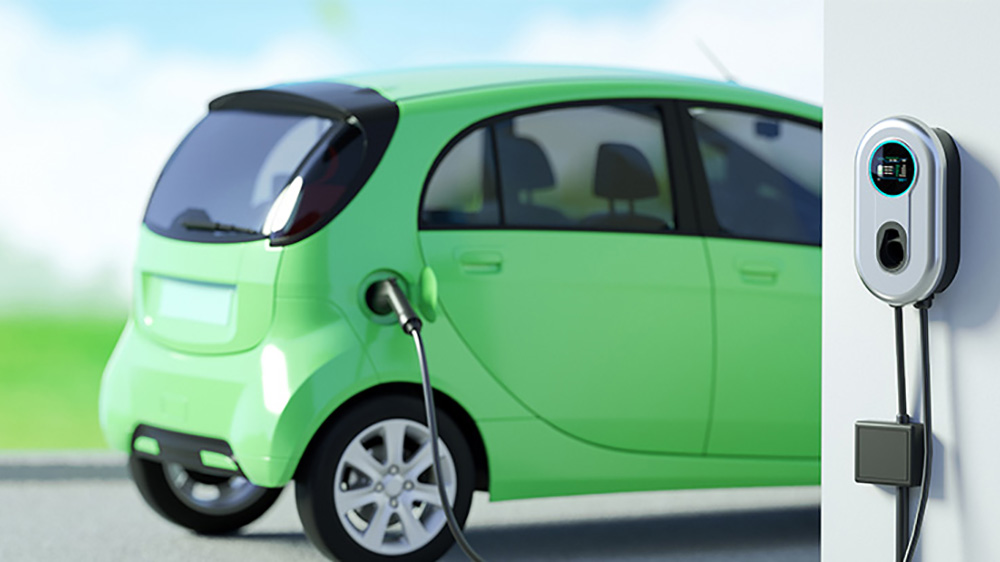

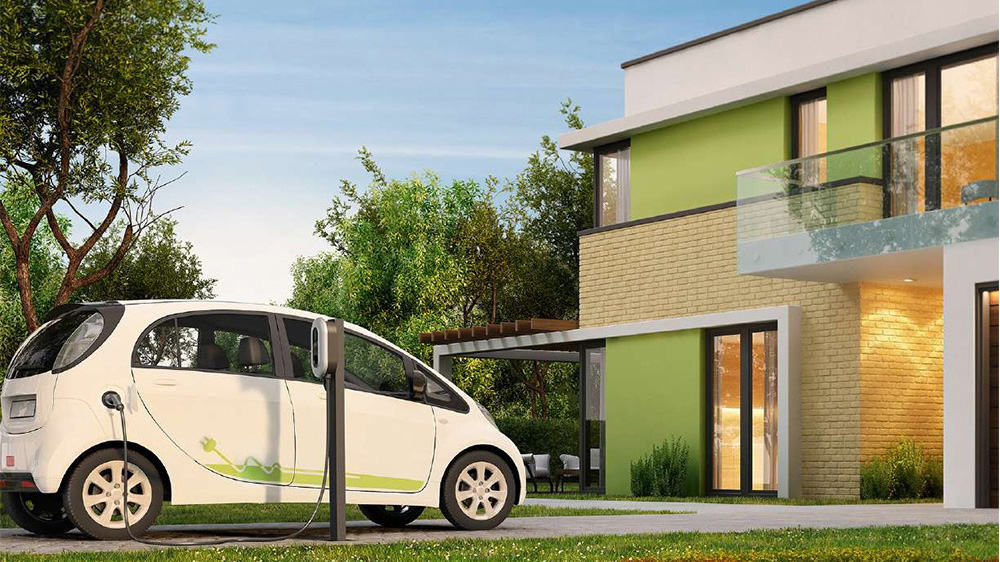

Application

FAQs

1. Can I have the OEM for EV chargers?
A: Yes of course. MOQ 500pcs.

2. What is OEM service can you offer?
A: Logo, Color, Cable, Plug, Connector, Packages and anything others you want to customize, pls feel free to contact us.

3. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

4. How is your product quality?
A: Firstly, our products have to pass strict inspections and repeated tests before they go out, rate of fine variety is 99.98%. We usually take real pictures to show the quality effect to the guests, and then arrange shipment.

5. How does the RFID feature work?
A: Put the owner card on the card readerzz, after one "beep", Swipe mode is done, and then swipe the card over the RFID Reader to begin charging.

6. Can i use this for commercial purposes? Can i remotely give access to what ever customer i want? Turn it on or off remotely?
A: Yes, you can manage many functions from the APP. Unauthorized users are not allowed to use your charger. The auto-lock feature automatically locks your charger after your charging session ends.

7. Can I use a higher wattage charger for my device?
A: Using a higher wattage charger is generally safe for most devices. The device will only draw the amount of power it requires, so a higher wattage charger will not necessarily damage the device. However, it is crucial to ensure that the voltage and polarity match the device's requirements to avoid any potential harm.

8. Can a company representative indicate if this charger is energy star certified?
A: The iEVLEAD EV charger is Energy Star certified. We are also ETL certified.
