iEVLEAD 7KW AC Electric Vehicle Wall mounted EV Charger

Model: AB2-EU7-BRS

Max.Output Power: 7KW

Working Voltage: AC230V/Single Phase

Working Current: 32A

Charging Display: LCD Screen

Output Plug: IEC 62196,Type 2

Function: Plug&Charge/RFID/APP

Cable Length: 5M

Connectivity: OCPP 1.6 JSON (OCPP 2.0 compatible)

Network: Bluetooth (Optional for APP smart control)

Sample: Support

Customization: Support

OEM/ODM: Support

Certificate: CE, ROHS

IP Grade: IP65

Warranty: 2 years

Send email to us

Product Detail

Product Tags

Production Introduction

iEVLEAD EV Charger is designed to be versatile.Compatible with most brand EVs.Compatible with most branded EV thanks to its attached Type 2 charging gun/interface with OCPP protocol,meeting the EU Standard (IEC 62196).Its flexibility is showcased through its smart energy management capabilities, this model deployment options on variable charging voltage in AC230V/Single Phase & currents in 32A,and numerous mounting options. It can be installed on Wall-mount or Pole-mount, to provide a great charging service experience for users.

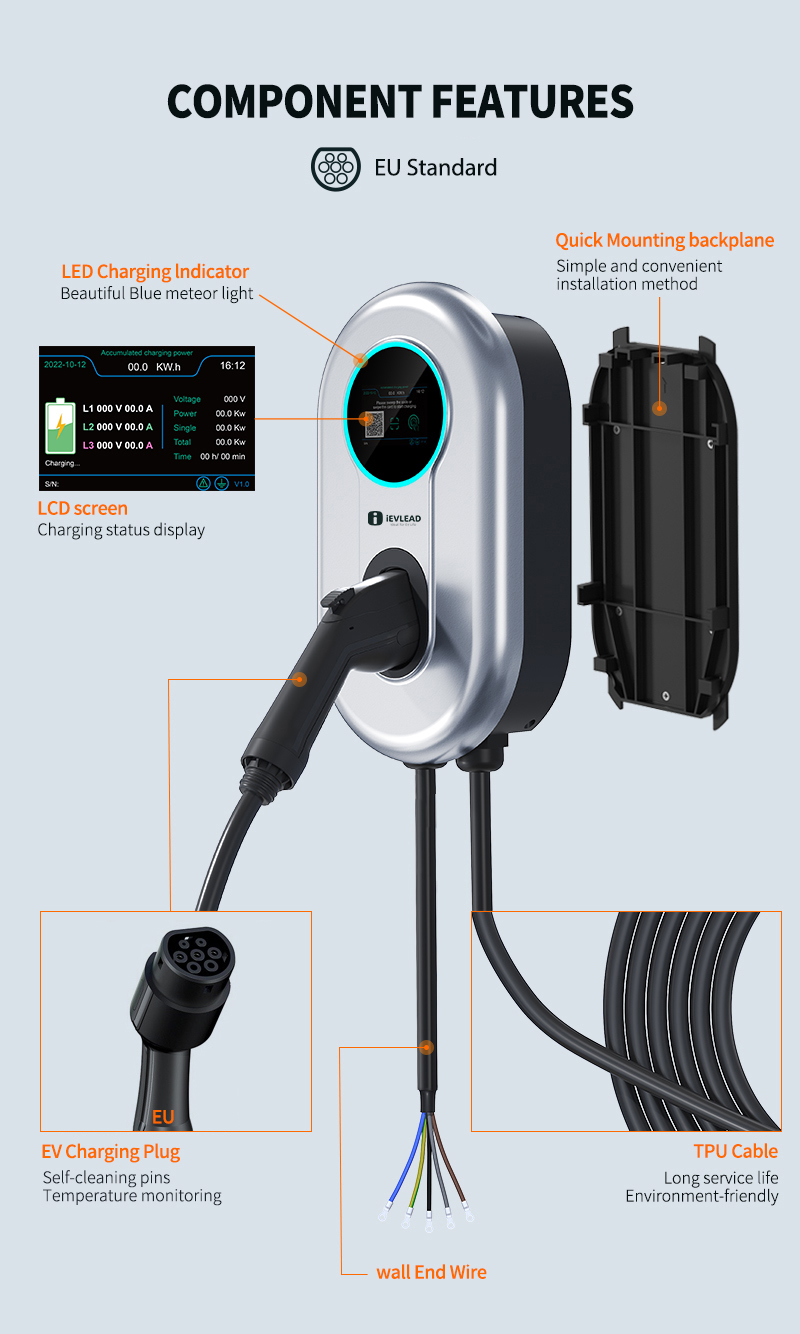

Features

1. 7KW Compatible designs.
2. Minimal size,streamline design.
3. Smart LCD Screen.
4. Home use with RFID and intelligent APP control.
5. Via Bluetooth network connect.
6. Smart charging and load balancing.

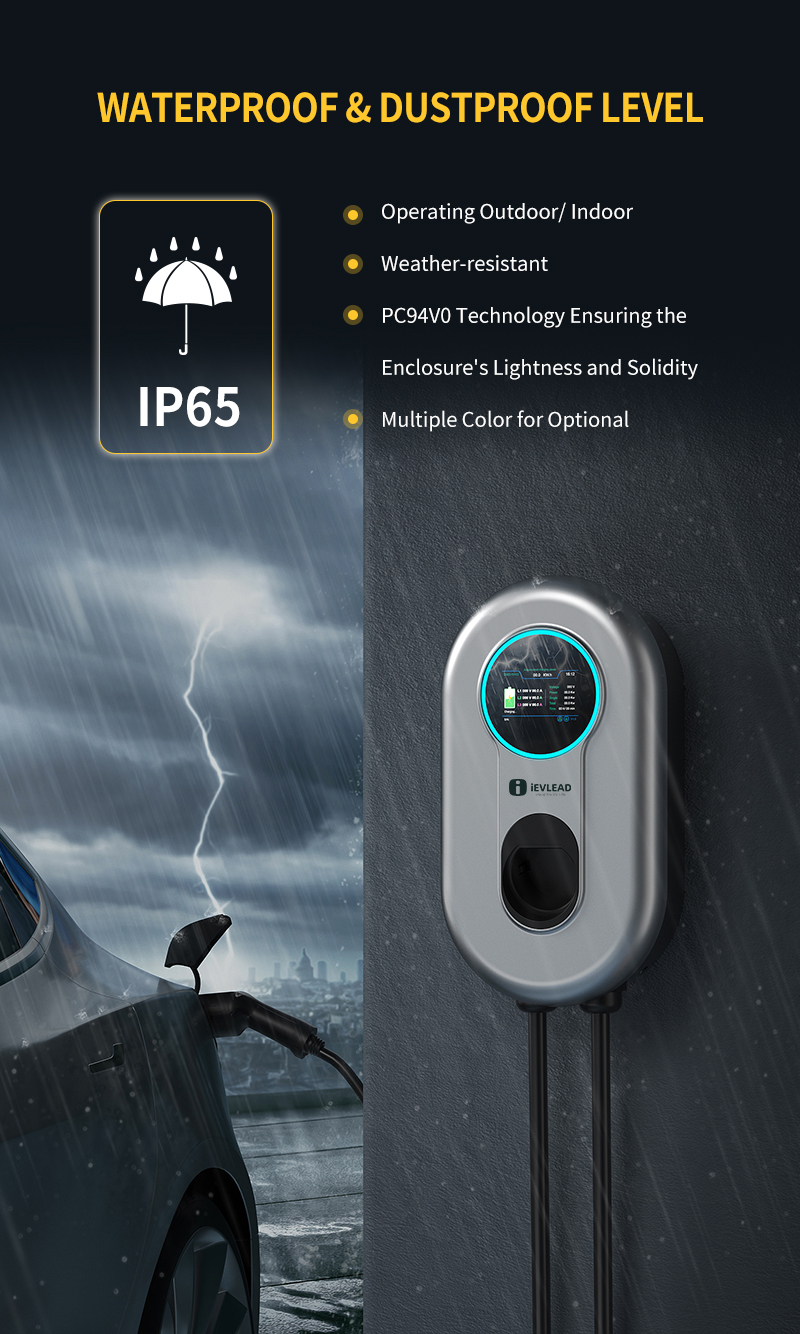

7. IP65 protection level,high protection for complex environment.

Specifications

Model				AB2-EU7-BRS
Input/Output Voltage				AC230V/Single Phase
Input/Output Current				32A
Max Output Power				7KW
Frequency				50/60Hz
Charging Plug				Type 2 (IEC 62196-2)
Output Cable				5M
Withstand Voltage				3000V
Work Altitude				<2000M
Protection				over voltage protection, over load protection, over-temp protection, under voltage protection, earth leakage protection, lightning protection, short circuit protection
IP level				IP65
LCD Screen				Yes
Function				RFID/APP
Network				Bluetooth
Certification				CE, ROHS

Application

FAQs

1. Are you a factory or trading company?
A: Yes, we are a factory.

2. What's your main market?
A: Our main market is North-America and Europe, but our cargoes are sold all over the world.

3. Why choose iEVLEAD?
A: 1）OEM Service. 2）The warranty period is 2 years. 3）Professional R&D Team and QC Team.

4. Is this compatible with my car?
A: iEVLEAD EV Charger works with all electric and plug-in hybrid vehicles.

5. How does the RFID feature work?
A: Put the owner card on the card readerzz, after one "beep", Swipe mode is done, and then swipe the card over the RFID Reader to begin charging.

6. Can i use this for commercial purposes? Can i remotely give access to what ever customer i want? Turn it on or off remotely?
A: Yes, you can manage many functions from the APP. Unauthorized users are not allowed to use your charger. The auto-lock feature automatically locks your charger after your charging session ends.

7. Can I control remotely through Internet?
A: Yes, you can control remotely through internet with APP via bluetooth. Charge your EV anytime, anywhere, with our app.

8. Can a company representative indicate if this charger is energy star certified?
A: The iEVLEAD EV charger is Energy Star certified. We are also ETL certified.
