iEVLEAD 7KW AC Electric Vehicle Home Charging Wallbox


  • Model: AD2-EU7-R
  • Max.Output Power: 7.4KW
  • Working Voltage: AC230V/Single Phase
  • Working Current: 32A
  • Charging Display: LED status light
  • Output Plug: IEC 62196,Type 2
  • Function: Plug&Charge/RFID
  • Cable Length: 5M
  • Connectivity: OCPP 1.6 JSON (OCPP 2.0 compatible)
  • Sample: Support
  • Customization: Support
  • OEM/ODM: Support
  • Certificate: CE,ROHS
  • IP Grade: IP55
  • Warranty: 2 years
  • Product Detail

    Product Tags

    Production Introduction

    The iEVLEAD EV Charger is built with versatility in mind, making it compatible with a wide range of electric vehicle brands. This is made possible by its Type 2 charging gun/interface, which adheres to the OCPP 1.6 JSON protocol and meets the EU Standard (IEC 62196). The charger's flexibility extends to its smart energy management capabilities, offering various options for charging voltage in AC230V/Single Phase and currents in 32A. Additionally, it can be installed on either a wall or pole mount, providing users with a convenient and reliable charging service experience.

    Features

    1. 7.4KW Compatible designs
    2. Adjustable charging current (6~32A)
    3. Smart LED status light
    4. Home use with RFID control
    5. Via Button control
    6. Smart charging and load balancing
    7. IP55 protection level,high protection for complex environment

    Specifications

    Model AD2-EU7-R
    Input/Output Voltage AC230V/Single Phase
    Input/Output Current 32A
    Max Output Power 7.4KW
    Frequency 50/60Hz
    Charging Plug Type 2 (IEC 62196-2)
    Output Cable 5M
    Withstand Voltage 3000V
    Work Altitude <2000M
    Protection over voltage protection, over load protection, over-temp protection, under voltage protection, earth leakage protection, lightning protection, short circuit protection
    IP level IP55
    LED status light Yes
    Function RFID
    Leakage Protection TypeA  AC 30mA+DC 6mA
    Certification CE, ROHS

    Application

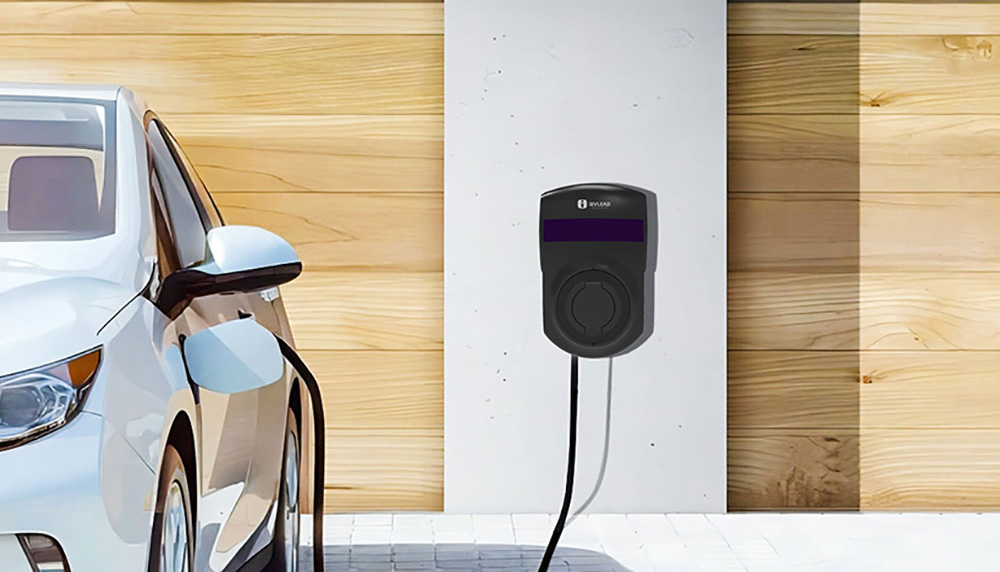

    ap02

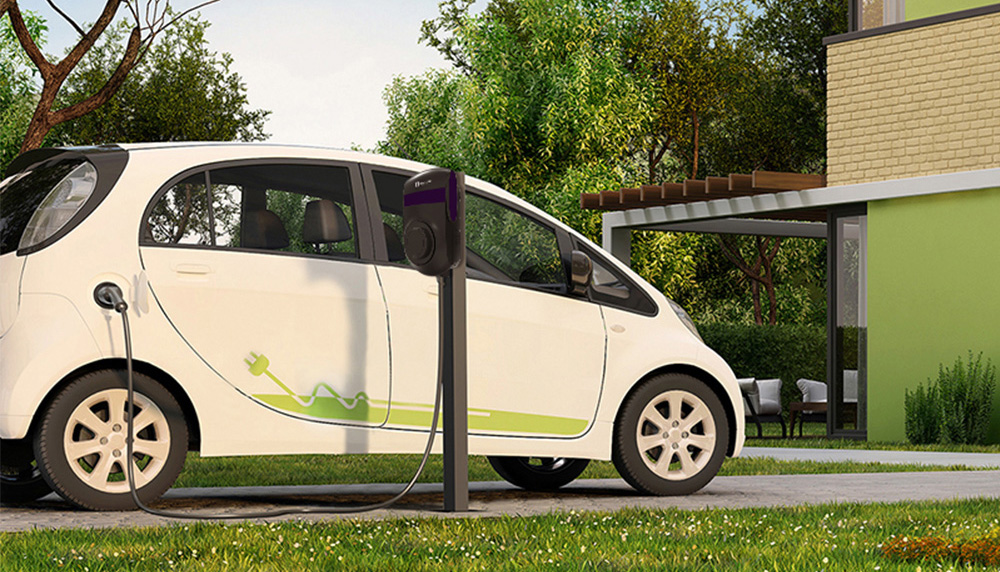

    ap01

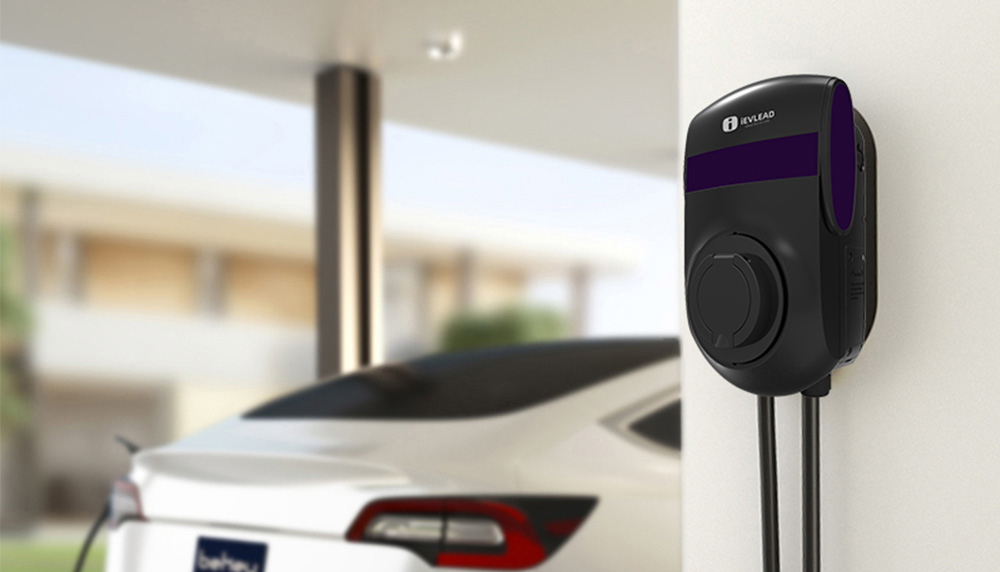

    ap03

    FAQs

    1. What is OEM service can you offer?
    A: Logo, Color, Cable, Plug, Connector, Packages and anything others you want to customize, pls feel free to contact us.

    2. What’s your main market?
    A: Our main market is North-America and Europe, but our cargoes are sold all over the world.

    3. What is your sample policy?
    A: We can supply the sample if We have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    4. What types of electric vehicles can be charged using a household AC charging pile?
    A: A household AC charging pile can charge a wide range of electric vehicles, including all-electric cars and plug-in hybrid electric vehicles (PHEVs). However, it is important to ensure compatibility between the charging pile and the specific vehicle model.

    5. How long does it take to charge an EV using an AC charging pile?
    A: The charging time depends on various factors, including the capacity of the EV's battery and the power output of the charging pile. Typically, AC charging piles provide power outputs ranging from 3.7 kW to 22 kW.

    6. Are all AC charging piles compatible with all electric vehicles?
    A: AC charging piles are designed to be compatible with a wide range of electric vehicles. However, it is essential to ensure that the charging pile supports the specific connector and charging protocol required by your EV.

    7. What are the benefits of having a household AC charging pile?
    A: Having a household AC charging pile provides convenience and flexibility for EV owners. It allows them to charge their vehicles conveniently at home overnight, eliminating the need for regular visits to public charging stations. It also helps to reduce reliance on fossil fuels and promotes the use of clean energy.

    8. Can a household AC charging pile be installed by a homeowner?
    A: In many cases, a homeowner can install a household AC charging pile themselves. However, it is recommended to consult an electrician to ensure proper installation and meet any local electrical requirements or regulations. Professional installation may also be required for certain charging pile models.
