iEVLEAD 7.36KW Rapid EV Supercharger for home


  • Model: PB1-EU7-BSRW
  • Max. Output Power: 7.36KW
  • Working Voltage: AC 230V/Single phase
  • Working Current: 8, 12, 14, 16, 20, 24, 28, 32A Adjustable
  • Charging Display: LCD Screen
  • Output Plug: Mennekes (Type2)
  • Input Plug: CEE 3pin
  • Function: Plug&Charge / RFID / APP (optional)
  • Cable Length: 5m
  • Connectivity: OCPP 1.6 JSON (OCPP 2.0 compatible)
  • Network: Wifi & Bluetooth (Optional for APP smart control)
  • Sample: Support
  • Customization: Support
  • OEM/ODM: Support
  • Certificate: CE,RoHS
  • IP Grade: IP65
  • Product Detail

    Product Tags

    Production Introduction

    iEVLEAD 7.36KW Rapid EV Supercharger with a power output of 7.36KW, providing a fast and efficient charging experience. Due to its portable design, it is simple and easy to mounted, the charging station can be installed in 15 minutes. Its modern and stylish appearance will blend seamlessly with your home environment, saving you valuable space in your garage or driveway.

    Let's set a convenient charging schedule with the iEVLEAD ChargePoint app now!

    Features

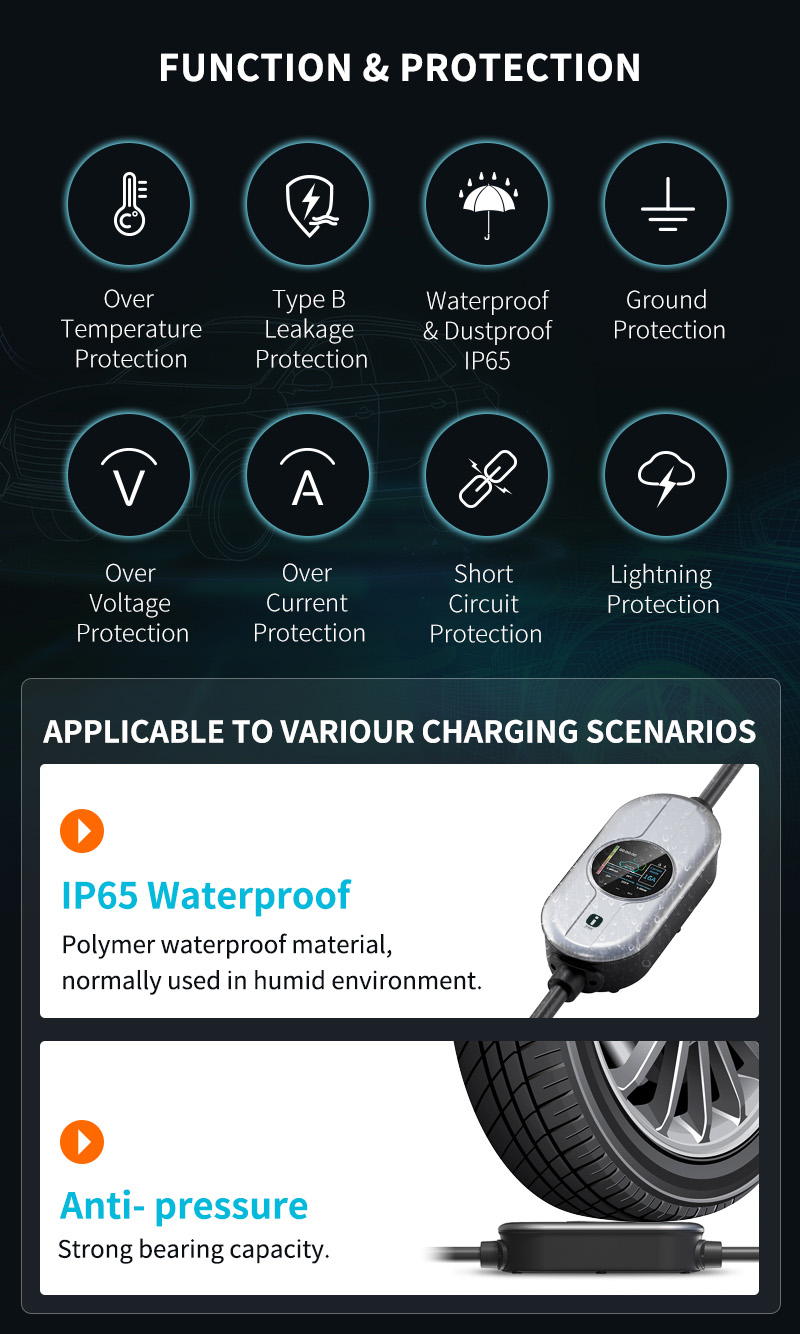

    * Safety Design: CE & RoHS Tested and Certified for iEVLEAD EV charger. IP65 (Water resistant), Fire resistant, Under Voltage protection, Over Voltage protection, Overload protection, Over-Temp protection, Short Circuit protection, Ground protection, Earth Leakage protection, and Lightning protection.

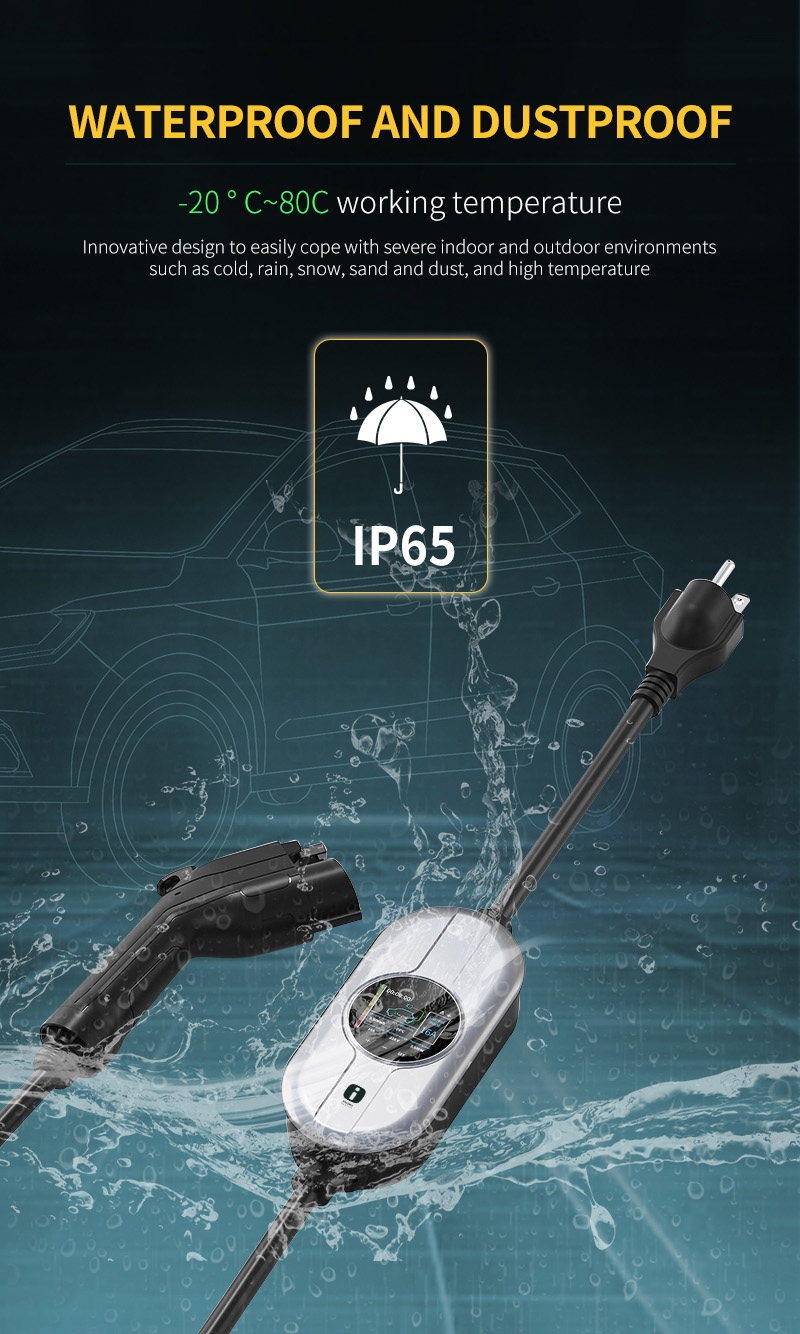

    * Widely Used: This electric vehicle charger can operate in environments of -20℃ to 55℃ (-4 to 131°F). The connector operating life is up to 10000 times.

    * Reliable Power: Type 2, 230 Volts, High-Power, 7.36 KW, this EV charger delivers up to Max 32A to charge electric vehicles.

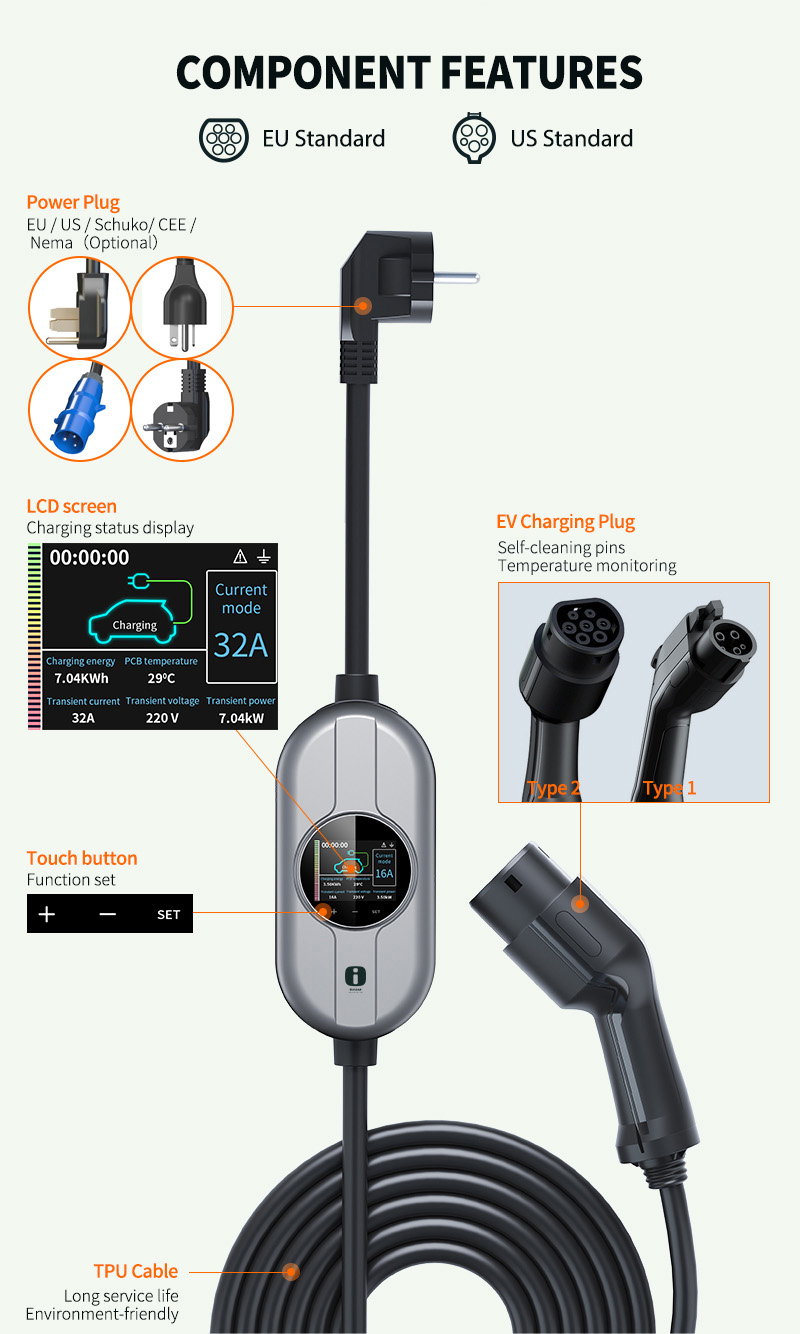

    * LCD Display: Through the LCD display on the control box of the Type2 EV charging equipment, you can view the charging status, time, real-time current and real-time power, etc. And you can switch the current (8, 12, 14, 16, 20, 24, 28, 32A).

    Specifications

    Model: PB1-EU7-BSRW
    Max. Output Power: 7.36KW
    Working Voltage: AC 230V/Single phase
    Working Current: 8, 12, 14, 16, 20, 24, 28, 32A Adjustable
    Charging Display: LCD Screen
    Output Plug: Mennekes (Type2)
    Input Plug: CEE 3-Pin
    Function: Plug&Charge / RFID / APP (optional)
    Cable Length: 5m
    Withstand Voltage: 3000V
    Work Altitude: <2000M
    Stand by: <3W
    Connectivity: OCPP 1.6 JSON (OCPP 2.0 compatible)
    Network: Wifi & Bluetooth (Optional for APP smart control)
    Timing/Appointment: Yes
    Current Adjustable: Yes
    Sample: Support
    Customization: Support
    OEM/ODM: Support
    Certificate: CE,RoHS
    IP Grade: IP65
    Warranty: 2years

    Application

    The iEVLEAD EV charging Equipped with Type2 connector, it’s compatible with electric vehicles with European standard AC charging interfaces or plug-in hybrid vehicles, including Ford, GM, Volkswagen, Nissan, Audi and more.

    Popular used in UK, France, Germany, Spain, Italy, Norway, Russia and other European countries, Middle East countries, Africa, Singapore, Malaysia and other Southeast Asian countries.

    car charging point
    car charging station
    electric car charger
    electric charging station
    hybrid car charger

    FAQs

    * What is the maximum power output of your EV chargers?

    Our EV chargers have a maximum power output ranging from 2 kW to 240 kW, depending on the model

    * Do you offer installation services for your EV chargers?

    We do not offer installation services for our EV chargers, but we can provide assistance and guidance for installation. We recommend hiring a licensed electrician for installation.

    * Can I get a lower price if I order large quantities?

    Yes, the larger the quantity, the lower the price.

    * What size cable do I need for a 7kW EV charger?

    EV charger cables usually come in 16 amps and 32 amps, the latter option is heavier and thicker in appearance as it carries a higher amount of current. It is common for 3.6kW EV chargers to have a 16 amp supply of current, whilst 7kW wallboxes tend to have a 32 amp supply

    *  How does the Portable EV Chargeing point work?

    The charger is usually connected to a power source in your home, such as a regular electrical outlet. It converts the alternating current from the power supply to direct current, compatible with electric vehicle batteries. The charger then transfers direct current to the vehicle's battery, charging it.

    * Can I power my home off of my EV's battery?

    An electric vehicle is itself a large battery backup, and recent innovations in EV technology allow you to supply power to your home in an emergency. Not every EV is capable of vehicle-to-home charging, however.

    * What is the charging speed of a 7.36KW Type2 mobile charger?

    iEVLEAD 7.36KW Ev Charger kit provides up to 7.36 kilowatts of charging power. Actual charging speeds may vary based on factors such as EV battery capacity and charging capabilities.

    * Can I charge my EV at any public charging station?

    Unlike gas stations, there is no universal charging port shared by all electric vehicles and all charging stations. Every EV has a J1772 port, which is good for Level 1 and Level 2 charging speeds. Most but not all charging stations have J1772 chargers.
