iEVLEAD 22KW Residential Electric Car Charging Stations


  • Model: AA1-EU22
  • Max. Output Power: 22KW
  • Working Voltage: 400 V AC Three phase
  • Working Current: 32A
  • Charging Display: LED light indicator
  • Output Plug: IEC 62196, Type 2
  • Input Plug: NONE
  • Installation: Wall-mount/Pile-mount
  • Cable Length: 5m
  • Sample: Support
  • Customization: Support
  • OEM/ODM: Support
  • Certificate: CE
  • IP Grade: IP65
  • Warranty: 2 years
  • Product Detail

    Product Tags

    Production Introduction

    AA1-EU22 comes with a standard Type2 (IEC62196) connector that can charge any electric vehicle on the road. AA1-EU22 charging stations are CE listed, meeting the stringent requirements of the leading safety standards organization. The EVC is available in wall or pedestal mount configuration and supports standard 5 or 8 metre cable lengths.

    Features

    IP65 Rated for Indoor&Outdoor use.
    Safe and reliable for your home and your EV.
    Compact Size for Easy Carry.
    Install once, charge whenever.

    Specifications

    iEVLEAD 22W Residential Electric Car Charging Stations
    Model No.: AA1-EU22 Bluetooth Optinal Certification CE
    Power Supply 22kW WI-FI Optional Warranty 2 years
    Rated Input Voltage 400V AC 3G/4G Optional Installation Wall-mount/Pile-mount
    Rated Input Current 32A Ethernet Optional Work Temperature -30℃~+50℃
    Frequency 50Hz OCPP OCPP1.6Json/OCPP 2.0 (optional) Work Humidity 5%~+95%
    Rated Output Voltage 400V AC Energy Meter MID Certified(optional) Work Altitude <2000m
    Rated Power 22KW RCD 6mA DC Product Dimension 330.8*200.8*116.1mm
    Standby Power <4W Ingress Protection IP65 Package Dimension 520*395*130mm
    Charge Connector Type 2 Impact Protection IK08 Net Weight 5.5kg
    LED Indicator RGB Electrical Protection Over current protection Gross Weight 6.6kg
    Cable Legth 5m Residual current protection External Package Carton
    RFID Reader Mifare ISO/IEC 14443A Ground protection
    Enclosure PC Surge protection
    Start Mode Plug&Play/RFID card/APP Over/Under Voltage protection
    Emergency Stop NO Over/Under temperature protection

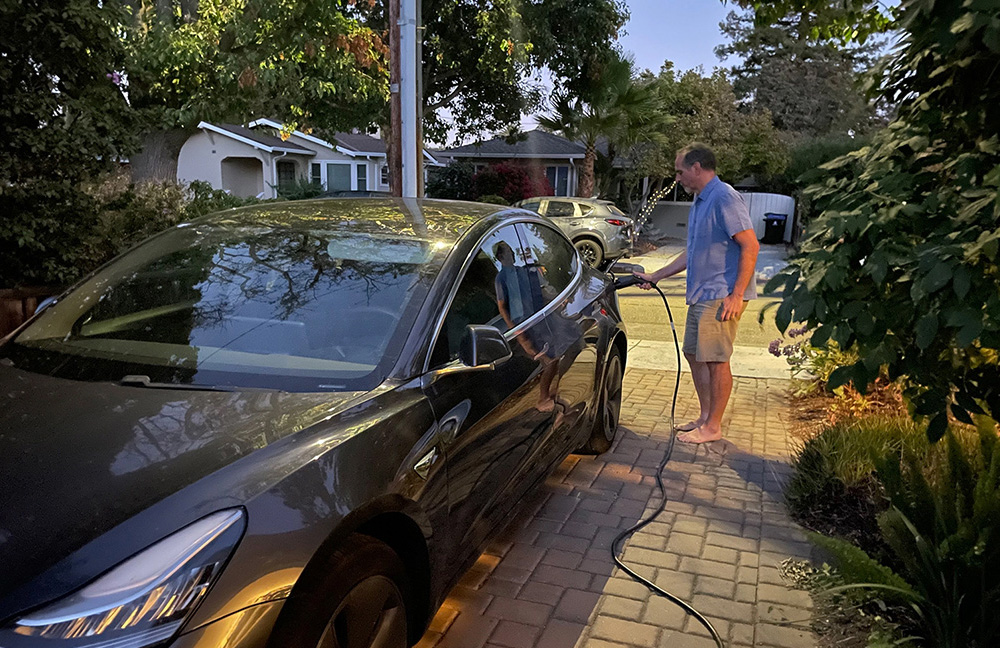

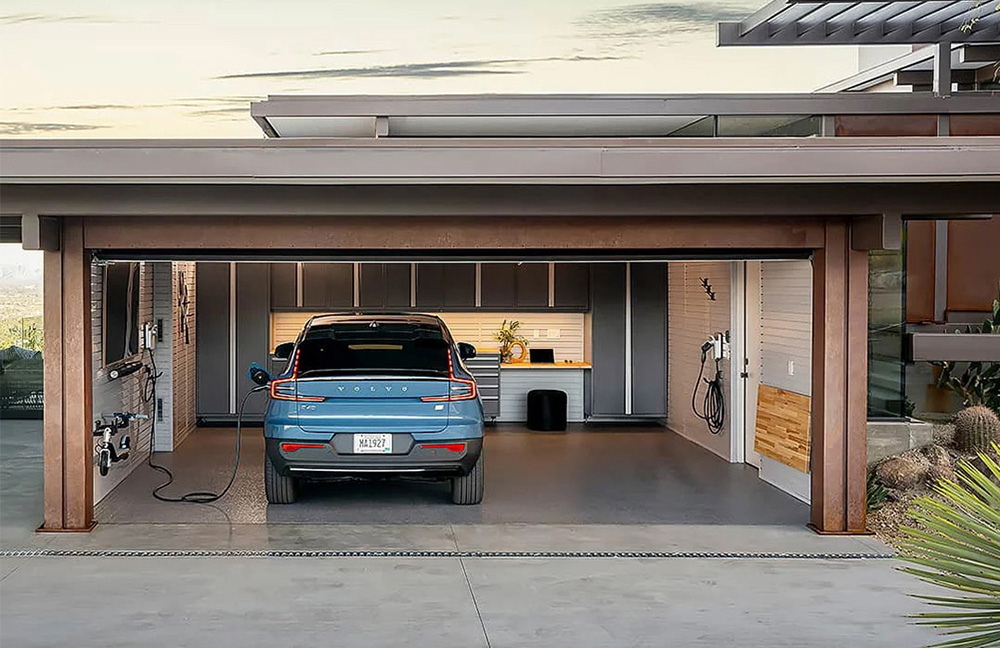

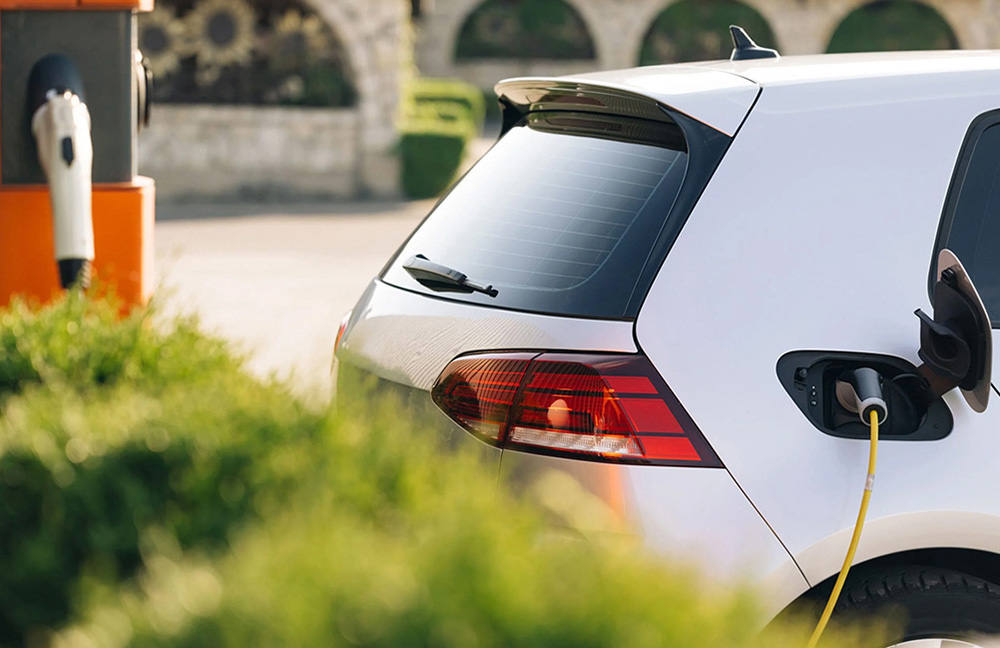

    Application

    ap01
    ap02
    ap03

    Details

    The iEVLEAD 22W Residential Electric Car Charging Stations offer a range of appealing features for residential users. Firstly, these stations provide a convenient and efficient way to charge electric cars at home, eliminating the need to visit public charging stations. With their compact design, they can be easily installed in residential garages or driveways, ensuring easy access for homeowners.

    Another notable characteristic is their fast charging capability. Equipped with 22W power output, these stations can charge electric vehicles quickly, reducing the waiting time for users. This feature is particularly advantageous for busy individuals who need their cars ready to go at a moment's notice.

    Moreover, the iEVLEAD 22W Residential Electric Car Charging Stations prioritize safety. They are built with advanced safety features, including overcurrent protection and surge protection, ensuring the security of both the charging station and the electric vehicle.

    These charging stations also offer compatibility with various types of electric cars, making them versatile for different models and brands. They are designed to be user-friendly with simple plug-in and charging operations, enabling hassle-free charging experiences for homeowners.

    In summary, the iEVLEAD 22W Residential Electric Car Charging Stations present a practical and efficient solution for residential electric vehicle owners. Their convenient installation, fast charging capability, safety features, and compatibility make them an ideal choice for hassle-free and reliable home charging.
