iEVLEAD 22KW AC Electric Vehicle Home Charging Wallbox

Model: AD2-EU22-R

Max.Output Power: 22KW

Working Voltage: AC400V/Three Phase

Working Current: 32A

Charging Display: LED status light

Output Plug: IEC 62196,Type 2

Function: Plug & Charge/RFID/APP

Cable Length: 5M

Connectivity: OCPP 1.6 JSON (OCPP 2.0 compatible)

Sample: Support

Customization: Support

OEM/ODM: Support

Certificate: CE,ROHS

IP Grade: IP55

Warranty: 2 years

Send email to us

Product Detail

Product Tags

Production Introduction

iEVLEAD EV Charger is designed to be versatile.Compatible with most brand EVs.Compatible with most branded EV thanks to its attached Type 2 charging gun/interface with OCPP protocol,meeting the EU Standard (IEC 62196).Its flexibility is showcased through its smart energy management capabilities, this model deployment options on variable charging voltage in AC400V/Three Phase & currents in 32A,and numerous mounting options. It can be installed on Wall-mount or Pole-mount, to provide a great charging service experience for users.

Features

1. Compatible with 22KW power requirements.
2. To adjust charging current within the range of 6 to 32A.
3. Intelligent LED indicator light that provides real-time status updates.
4. Designed for home use and equipped with RFID control for added security.
5. Can be operated conveniently through button controls.
6. Utilizes intelligent charging technology to optimize power distribution and balance load.
7. High level of IP55 protection, ensuring reliable performance in demanding environments.

Specifications

Model				AD2-EU22-R
Input/Output Voltage				AC400V/Three Phase
Input/Output Current				32A
Max Output Power				22KW
Frequency				50/60Hz
Charging Plug				Type 2 (IEC 62196-2)
Output Cable				5M
Withstand Voltage				3000V
Work Altitude				<2000M
Protection				over voltage protection, over load protection, over-temp protection, under voltage protection, earth leakage protection, lightning protection, short circuit protection
IP level				IP55
LED status light				Yes
Function				RFID
Leakage Protection				TypeA AC 30mA+DC 6mA
Certification				CE, ROHS

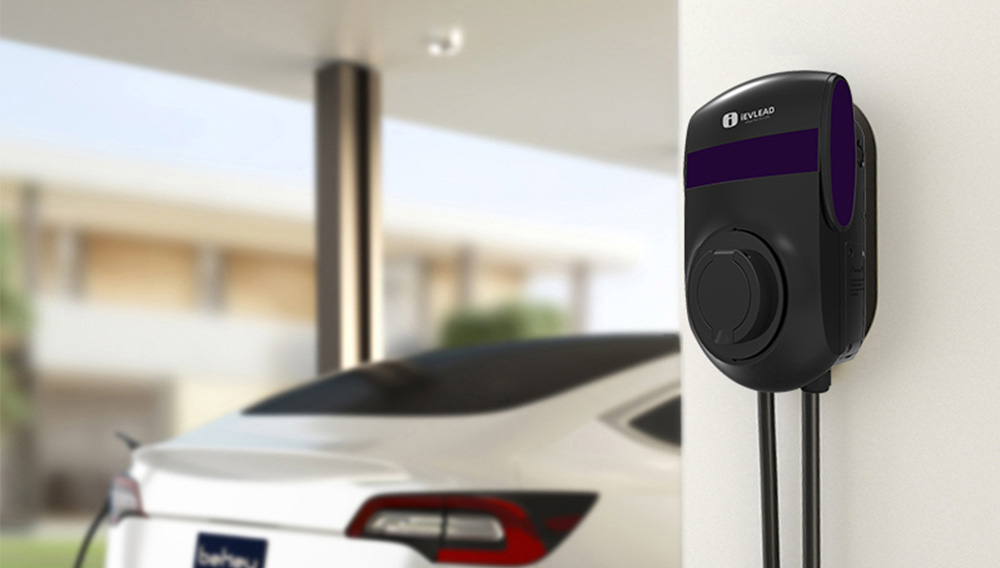

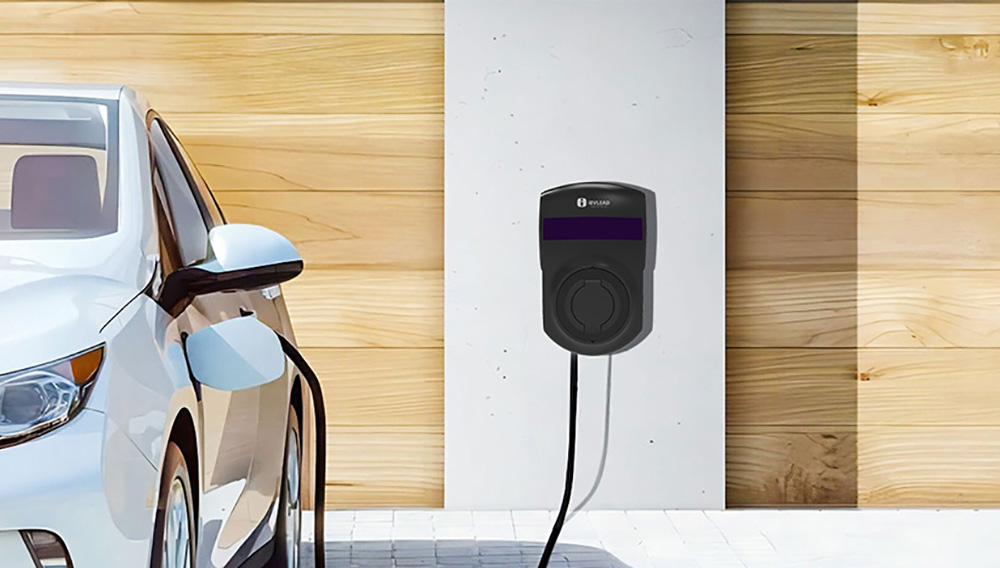

Application

FAQs

1. What's the product warranty policy?
A: All the goods purchased from our company can enjoy one-year free warranty.

2. Can I get sample?
A: For sure, please contact our sales.

3. What is the warranty?
A: 2 years. In this period, we will supply technical support and replace the new parts by free, customers are in charge of delivery.

4. How can I monitor the charging status of my vehicle with a wall mounted EV charger?
A: Many wall mounted EV chargers come with smart features and connectivity options that allow you to monitor the charging status remotely. Some chargers have smartphone apps or online portals to track and manage the charging process.

5. Can I set a charging schedule with a wall mounted EV charger?
A: Yes, many wall mounted EV chargers allow you to set a charging schedule, which can help optimize charging times and take advantage of lower electricity rates during off-peak hours. This feature is particularly beneficial for customers with time-of-use (TOU) electricity pricing.

6. Can I install a wall mounted EV charger in an apartment complex or shared parking area?
A: Yes, wall mounted EV chargers can be installed in apartment complexes or shared parking areas. However, it is crucial to obtain permission from the property management and ensure that the necessary electrical infrastructure is in place.

7. Can I charge an electric vehicle from a solar panel system connected to a wall mounted EV charger?
A: Yes, it is possible to charge an electric vehicle using a solar panel system connected to a wall mounted EV charger. This allows for clean and renewable energy to power the vehicle, further reducing the carbon footprint.

8. How can I find certified installers for a wall mounted EV charger installation?
A: To find certified installers for a wall mounted EV charger installation, you can consult your local electric vehicle dealership, electric utility company, or online directories that specialize in EV charging infrastructure. Additionally, contacting manufacturers of the chargers themselves may provide guidance on recommended installers.
