iEVLEAD 11kw AC EV Charger With Ocpp1.6J


  • Model: AD1-EU11
  • Max. Output Power: 11KW
  • Working Voltage: 400 V AC Three phase
  • Working Current: 16A
  • Display Screen: 3.8-inch LCD screen
  • Charging Display: 4LED lights indicator
  • Output Plug: IEC 62196, Type 2
  • Input Plug: NONE
  • Function: Smart phone APP Control, Tap card control, Plug-and-charge
  • Installation: Wall-mount/Pile-mount
  • Cable Length: 5m
  • Sample: Support
  • Customization: Support
  • OEM/ODM: Support
  • Certificate: CE
  • IP Grade: IP55
  • Warranty: 2 years
  • Product Detail

    Product Tags

    Production Introduction

    The charger is designed according to IEC 62752, IEC 61851-21-2 standard, mainly consists of control box, charging connector, plug and etc... which is a portable electric vehicle charging device. It enables car owners to charge electric vehicles anywhere using a standard home power interface, featuring high efficiency and portability.

    Features

    Designed with 12 advanced safety features.
    Schedule charging times during non-peak hours to save money.
    Use the Smart phone APP to remotely control charging.
    Equipped with advanced safety features, ensuring a relaxed charging experience.

    Specifications

    iEVLEAD 11kw AC EV Charger With Ocpp1.6J
    Model No.: AD1-EU11 Bluetooth Optional Certification CE
    AC Power Supply 3P+N+PE WI-FI Optional Warranty 2 years
    Power Supply 11kW 3G/4G Optional Installation Wall-mount/Pile-mount
    Rated Input Voltage 230V AC LAN Optional Work Temperature -30℃~+50℃
    Rated Input Current 32A OCPP OCPP1.6J Storage Temperature -40℃~+75℃
    Frequency 50/60Hz Impact Protection IK08 Work Altitude <2000m
    Rated Output Voltage 230V AC RCD Type A+DC6mA (TUV RCD+RCCB) Product Dimension 455*260*150mm
    Rated Power 7KW Ingress Protection IP55 Gross Weight 2.4kg
    Standby Power <4W Vibration 0.5G, No acute vibration and impation
    Charge Connector Type 2 Electrical Protection Over current protection ,
    Display Screen 3.8 inch LCD Screen Residual current protection,
    Cable Legth 5m Ground protection,
    Relative humidity 95%RH, No water droplet condensation Surge protection,
    Start Mode Plug&Play/RFID card/APP Over/Under Voltage protection,
    Emergency Stop NO Over/Under temperature protection

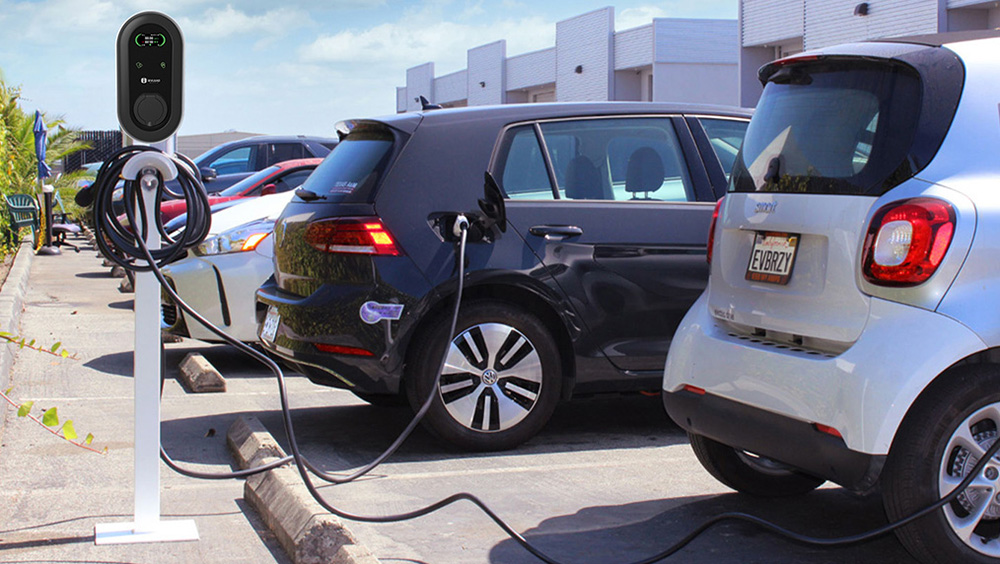

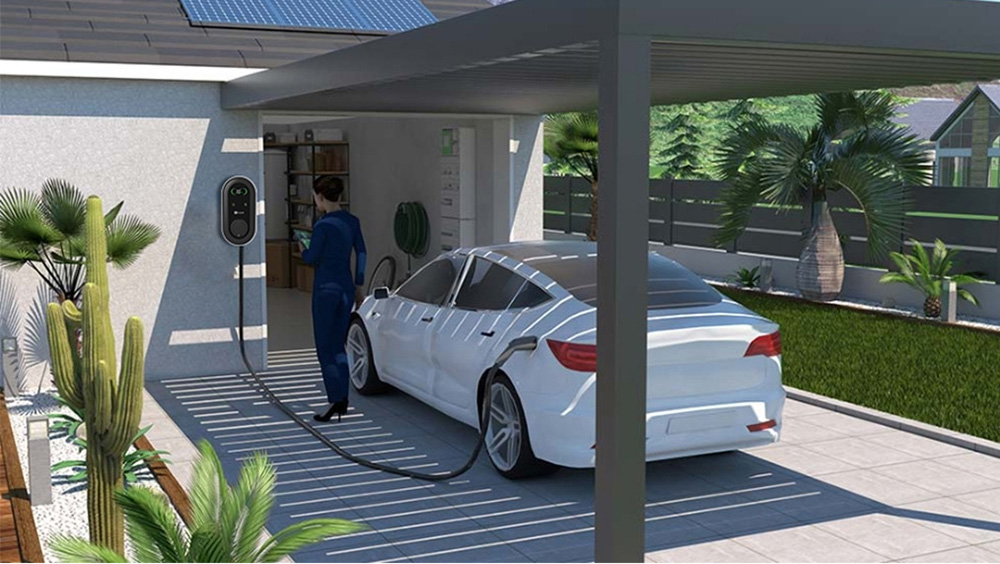

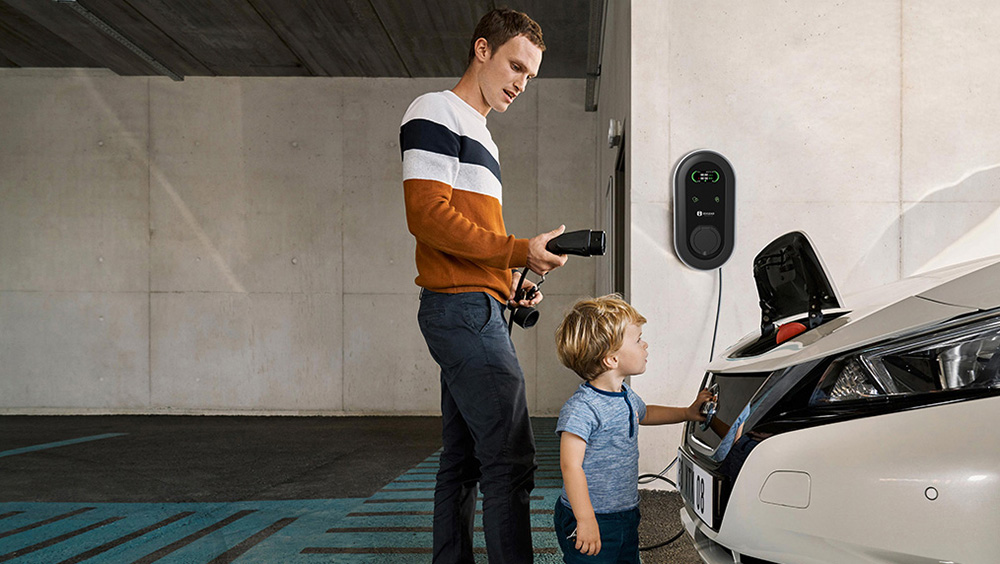

    Application

    ap01
    ap02
    ap03

    FAQs

    Q1: What are your prices?
    A: Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.

    Q2: Do you guarantee safe and secure delivery of products?
    A: Yes, we always use high quality export packaging. Specialist packaging and non-standard packing requirements may incur an additional charge.

    Q3: What is your sample policy?
    We can supply the sample if We have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q4: What is a Smart Residential EV Charger?
    A: A smart residential EV charger is a home EV charging station that offers advanced features such as Wi-Fi connectivity, mobile app control, and the ability to track and monitor charging sessions.it to run efficiently.

    Q5: How does a smart residential EV charger work?
    A: A smart residential EV charger is installed in the home and connected to the grid. It powers the EV using a standard electrical outlet or a dedicated circuit, and charges the vehicle's battery using the same principles as any other charging station.

    Q6: Is there any warranty coverage for smart residential EV chargers?
    Yes, most smart residential EV chargers come with manufacturer warranty coverage. Warranty periods can vary, but are usually 2 to 5 years. Before buying a charger, be sure to read the warranty terms and conditions to understand what the warranty covers and any maintenance requirements.

    Q7: What are the maintenance requirements for smart household electric vehicle charging piles?
    A: Smart residential EV chargers typically require minimal maintenance. Regular cleaning of the exterior of the charger and keeping the charging connector clean and free of debris is recommended. It is also important to follow any specific maintenance instructions provided by the manufacturer.

    Q8: Can I install a smart home EV charger myself or do I need a professional installation?
    A: While some smart residential EV chargers offer plug-and-play installation options, it is generally recommended that a professional electrician install the charger. Professional installation ensures proper electrical connections, compliance with local electrical codes, and overall safety.
