iEVLEAD 11KW AC Electric Vehicle Home Charging Wallbox


  • Model: AD2-EU11-R
  • Max.Output Power: 11KW
  • Working Voltage: AC400V/Three Phase
  • Working Current: 16A
  • Charging Display: LED status light
  • Output Plug: IEC 62196,Type 2
  • Function: Plug & Charge/RFID/APP
  • Cable Length: 5M
  • Connectivity: OCPP 1.6 JSON (OCPP 2.0 compatible)
  • Sample: Support
  • Customization: Support
  • OEM/ODM: Support
  • Certificate: CE,ROHS
  • IP Grade: IP55
  • Warranty: 2 years
  • Product Detail

    Product Tags

    Production Introduction

    The iEVLEAD EV Charger offers versatility by being compatible with a wide range of electric vehicle brands. This is made possible through its Type 2 charging gun/interface that adheres to the OCPP protocol, meeting the EU Standard (IEC 62196). Its flexibility is demonstrated through its smart energy management capabilities, allowing for variable charging voltage options in AC400V/Three Phase and variable currents in 16A. Furthermore, the charger can be conveniently installed on either a wall-mount or pole-mount, ensuring a superb charging service experience for users.

    Features

    1. Designs that are compatible with 11KW power requirements.
    2. To adjust charging current within the range of 6 to 16A.
    3. Intelligent LED indicator light that provides real-time status updates.
    4. Designed for home use and equipped with RFID control for enhanced security.
    5. Can be operated conveniently through button controls.
    6. Utilizes smart charging technology for efficient and balanced power distribution.
    7. Boasts a high level of IP55 protection, ensuring reliable performance in challenging environmental conditions.

    Specifications

    Model AD2-EU11-R
    Input/Output Voltage AC400V/Three Phase
    Input/Output Current 16A
    Max Output Power 11KW
    Frequency 50/60Hz
    Charging Plug Type 2 (IEC 62196-2)
    Output Cable 5M
    Withstand Voltage 3000V
    Work Altitude <2000M
    Protection over voltage protection, over load protection, over-temp protection, under voltage protection, earth leakage protection, lightning protection, short circuit protection
    IP level IP55
    LED status light Yes
    Function RFID
    Leakage Protection TypeA AC 30mA+DC 6mA
    Certification CE, ROHS

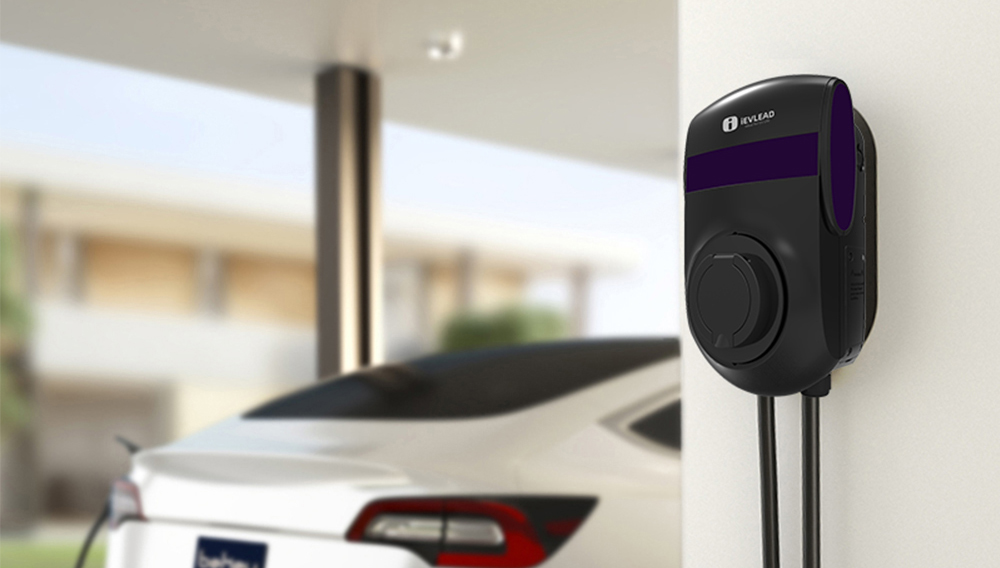

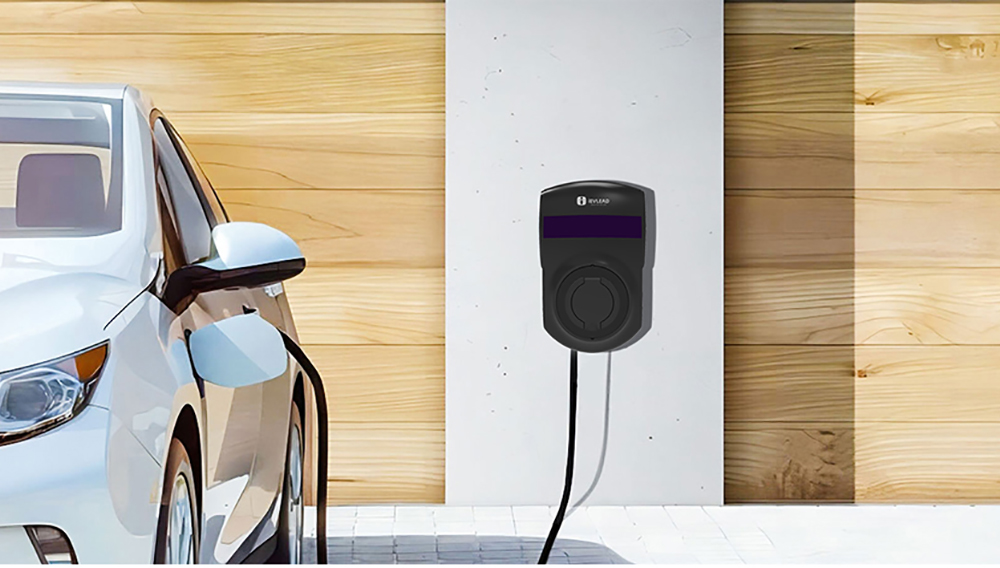

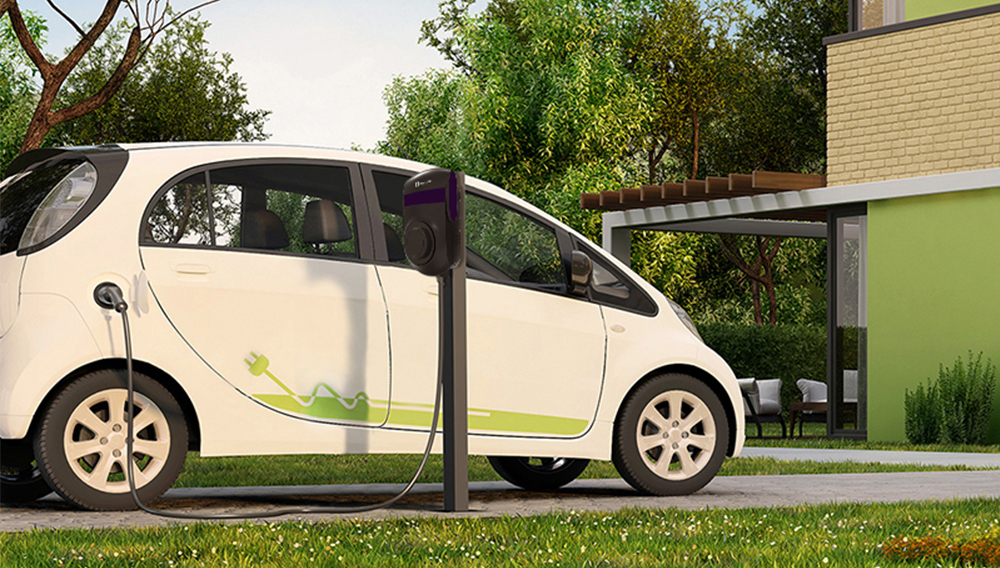

    Application

    ap01
    ap02
    ap03

    FAQs

    1. What can you buy from us?
    A: EV Charger, EV Charging cable, EV Charging adapter.

    2. What’s your main market?
    A: Our main market is North-America and Europe, but our cargoes are sold all over the world.

    3. Do you handle shipments?
    A: For small order, we send goods by FedEx, DHL, TNT, UPS, express service on door-to-door term. For big order, we send goods by sea or by air.

    4. Can I charge my electric vehicle using a wall mounted EV charger when traveling?
    A: Wall mounted EV chargers are primarily designed for use at home or in fixed locations. However, public charging stations are widely available in many areas, allowing electric vehicle owners to charge their vehicles while traveling.

    5. How much does a wall mounted EV charger cost?
    A: The cost of a wall mounted EV charger depends on various factors, such as the charger's power output, features, and manufacturer. Prices can range from a few hundred to several thousand dollars. Additionally, installation costs should be taken into account.

    6. Do I need a professionally licensed electrician to install a wall mounted EV charger?
    A: It is highly recommended to hire a professionally licensed electrician for the installation of a wall mounted EV charger. They have the expertise and knowledge to ensure the electrical wiring and system can handle the additional load safely.

    7. Can a wall mounted EV charger be used with all electric vehicle models?
    A: Wall mounted EV chargers are generally compatible with all electric vehicle models, as they follow industry-standard charging protocols. However, it is always advisable to check the charger's specifications and compatibility with your specific vehicle model.

    8. What types of connectors are used with wall mounted EV chargers?
    A: Common connector types used with wall mounted EV chargers include Type 1 (SAE J1772) and Type 2 (Mennekes). These connectors are standardized and widely used by electric vehicle manufacturers.
