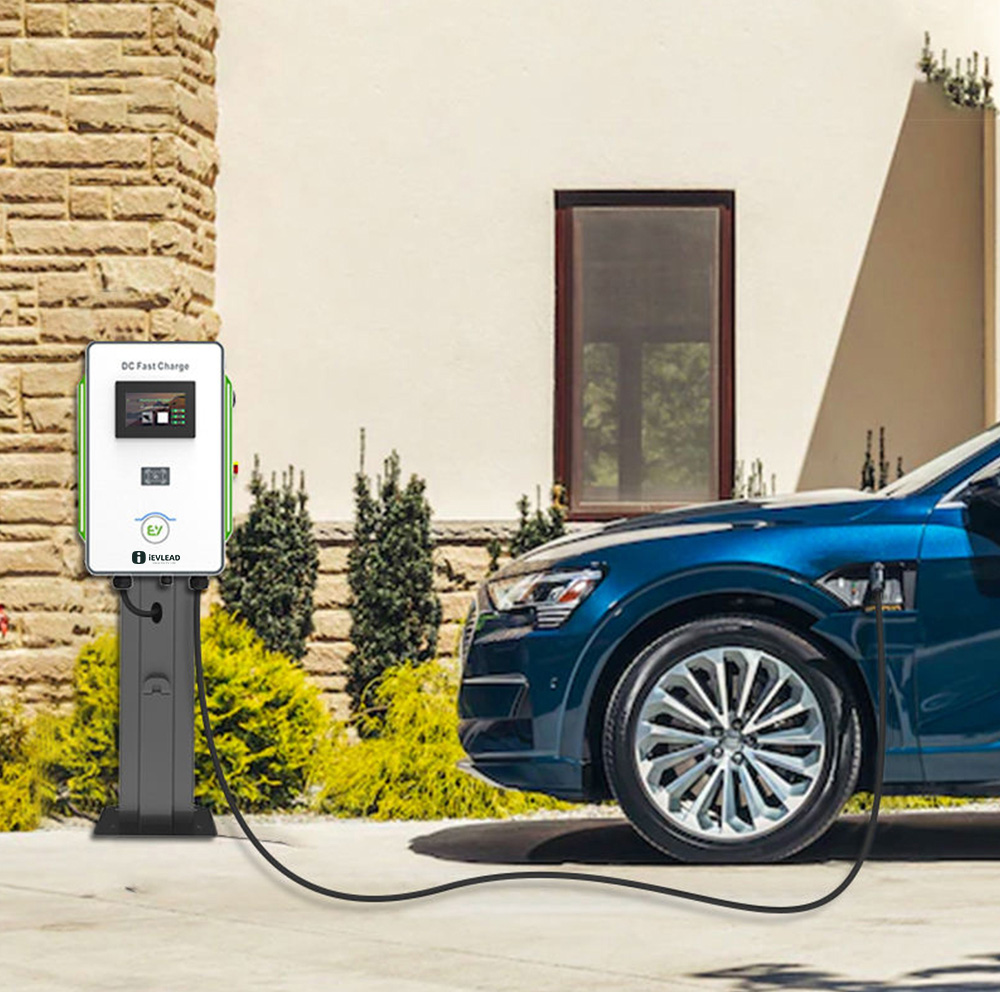

iEVLEAD 30KW EU Electric Vehicles DC Wall Charger

  • Model: DD1-EU30-BRSW
  • Max. Output Power: 30KW
  • Input Voltage: Three PhaseAC 380V±20%
  • Input Current: AC 0A~45A
  • Charging Display: LCD SCREEN
  • Output voltage: DC 200V~1000V
  • Output current: DC 0~60A
  • Output Plug: CCS2
  • Input Plug: NONE
  • Function: Plug and Charge ,RFID Swipe Card
  • Sample: Support
  • Customization: Support
  • OEM&ODM: Support
  • Product Detail

    Product Tags

    Production Introduction

    Manage your charging easily, intelligently, and insightfully. The advanced Autel Charge mobile app allows you to track, manage, schedule, and optimize smart EV charging anytime to take advantage of off-peak electricity rates.

    Wi-Fi, Bluetooth, and Ethernet connectivity options ensure automatic OTA (over-the-air) firmware updates and seamless connectivity and communication with your mobile device. The optional start and stop RFID card functionality can prevent unauthorized use.


    Support European standard CCS2 charging point
    ISO15118/DIN70121, IEC61851/IEC62196
    5-inch high-definition LCD capacitive touch LCD, multi-language support
    RFID、Plug and Charge、QRCode
    Wide voltage (200~1000V), wide current (0~60A) output
    Wi-Fi/Ethernet/4G LTE ,Choose one of three ways to connect
    Smart charging power distribution load management


    Model: DD1-EU30
    Input Voltage: Three PhaseAC  380V±20% ( L1+L2+L3+N+PE )
    Frequency: 50Hz±1Hz
    Input current range: AC 0A~45A
    Rated power: 30KW
    Charging mode: Plug and Charge ,RFID Swipe Card
    MTBF: ≥120kh
    Power-on input impulse current : ≤ Maximum input current 120%
    Input micro break: With AC30mA leakage micro-break
    Output Voltage: DC 200V~1000V
    Output current: DC 0~60A
    Output current limit protection: Yes
    Output short circuit protection: Yes
    Stable current accuracy: ≤±0.5%
    Stable voltage : ≤±0.5%
    Ripple factor: ≤±0.5%
    Temperature Coefficient: ≤±0.2‰
    effectiveness: ≥95%
    Power factor: ≥0.98 (Above 50% load)
    Export insurance: 80A
    Working temperature: -30℃~+55℃; -40℃(±4℃) module start-up; derating use above 55℃;shutdown above 70℃
    Storage temperature: -40°C ~ +80°C
    Cable length: 5m
    Standard: EN/IEC 61851-1, EN/IEC 61851-21-2

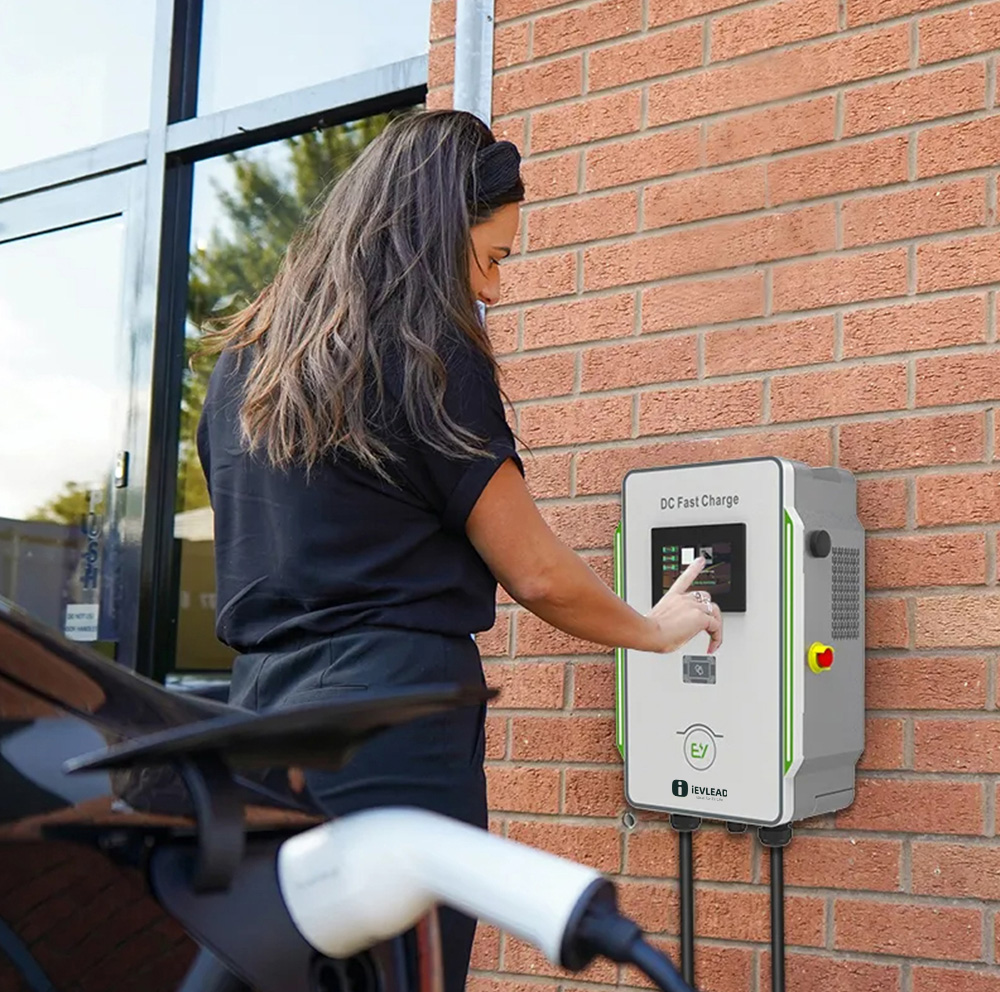

    Installation: Wall-mounted(Hanging plug wire and plug head)
    Temperature: -25°C~+55°C
    Humidity: 5%-95%(Non-condensation)
    Altitude: ≤2000m
    Product size: 460x 670x270mm(W*D*H)
    Wind tunnel: Bottom in top out
    cooling method: Smart air cooling
    Mounting brackets: Aluminum alloy bracket
    Noise: ≤60dB
    connection method: Type C
    Plug standard: CCS2
    Executive standard(European standard): IEC61851 IEC62196 ISO15118 EN61000-6-4:2007 EN61000-6-2:2005
    LCD: High-definition highlight industrial touch screen
    LED: Charging green, fault red
    Button: EPO(Emergency stop detection)
    Emergency stop detection: Emergency stop cuts off DC output
    DC voltage sampling: DC+, DC- output DC voltage sampling(Front end of DC contactor)
    BAT battry sampling: BAT+,BAT-batteryvoltage sampling(sampling DC contactor rearend)
    Measurement accuracy: Level 1
    Battery reverse connection detection: Prevent the gun tip or battery from being reversed
    Prevent the gun tip or battery from being reversed: Plug temperature detection
    Temperature check inside the case
    Insulation detection: DC+and PE, DC-and PE impedance
    current detection:
    30mA leakage protection switch
    Protective function: Output short circuit protection,output over voltage protection,output over current protection, fan failure alarm
    USBupgrade: Firmware upgrade
    SD card upgrade: Firmware upgrade
    reset: PCB onboard buttons
    Welding inspection: 1 second discharge below 60V
    PCB operating instructions: PCB onboard LED




    1. Are you a factory or a trading company?

    A: We are a professional manufacturer of new and sustainable energy applications in China and overseas sales team. Have 10 years of export experience.

    2. How do we ensure quality?

    A: Always have pre-production samples before mass production; always have final inspection before shipment;

    3. What standards for cable connectors do you support?

    A: We support Chinese national GBT standard, European CCS standard, and Japanese CHAdeMo standard.

    4. What is the MOQ?

    A: No MOQ limit, if not customized, we are happy to accept any type of order, wholesale business available

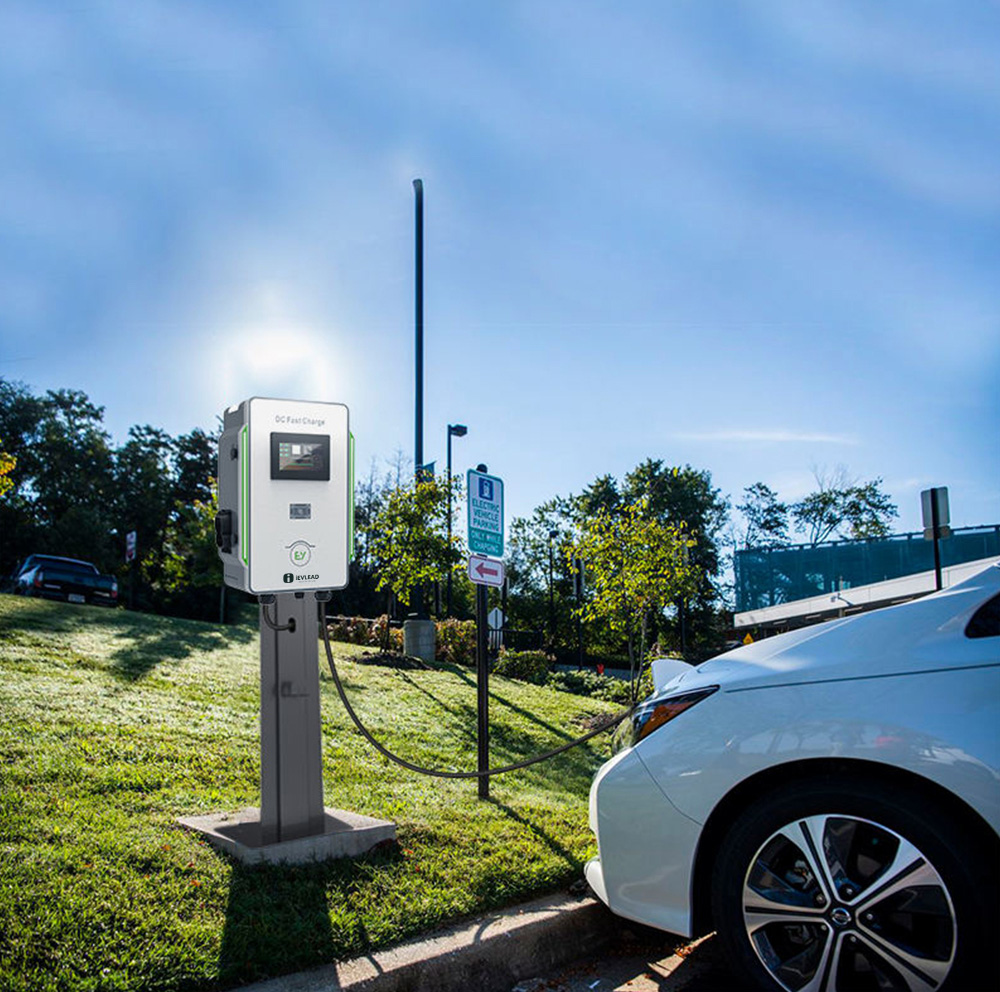

    5. Is this EV charger for outdoor use?

    A: Yes, this EV charger is designed for outdoor use with protection level IP55, which is waterproof, dustproof, corrosion resistance, and rust prevention.

    6. What's the rated of EV Charging Cable you have?

    Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A.

    7. Do you test all goods before delivery?

    A: Yes, We have 100% test before delivery.

    8. How do you guarantee the quality?

    A: We have 100% test before delivery, the warranty time is 2 years.
